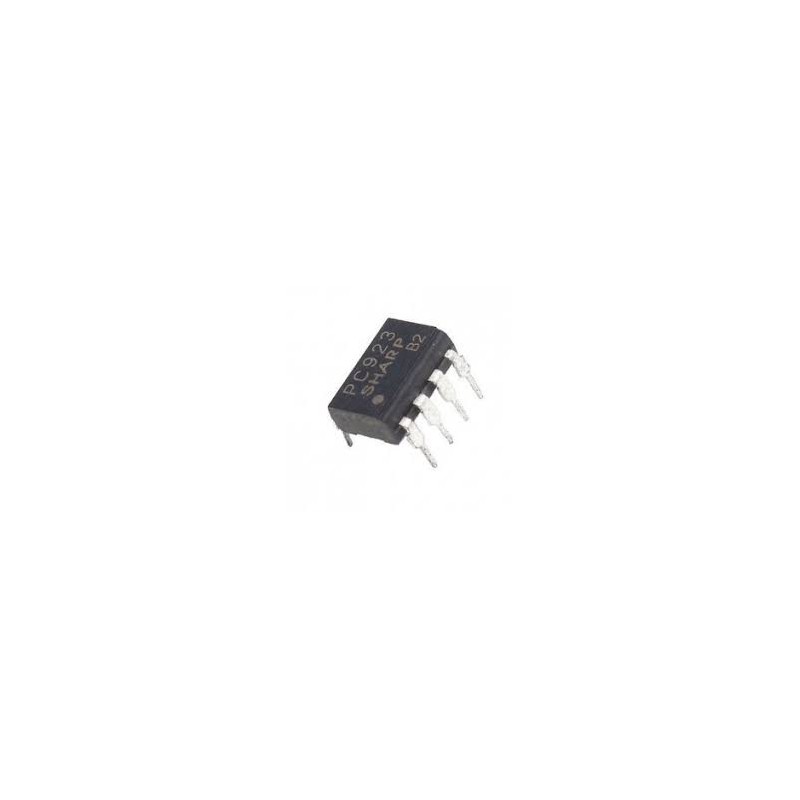

PC923 Photocoupler DIP-8 IC Robotics Bangladesh
  • PC923 Photocoupler DIP-8 IC Robotics Bangladesh

PC923 Photocoupler DIP-8 IC

RBD-1619

  • IC Name: PC923L
  • Package/Case: DIP-8
BDT 85.00
BDT 85.00 BDT 85.00 BDT 85.00 BDT 85.00
Tax included Tax excluded Tax included Tax excluded
BDT 85.00 Tax excluded
BDT 85.00 Tax included
BDT 0.00 Tax
BDT 85.00 Tax excluded
BDT 0.00 Tax
BDT 85.00 Tax included
Quantity
In-Stock
42 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

PC923L contains a IRED optically coupled a OPIC. It is packaged in a 8-pin DIP, available in SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Inverter controlled refrigerator
  2. Inverter controlled air-conditioner
  3. General purpose inverter (High accuracy control)
  4. Electromagnetic cooking device

Features:

  1. Double transfer mold package (ideal for Flow Soldering)
  2. Built-in direct drive circuit for MOS-FET/IGBT (IO1P,IO2P=MAX. 0.6A)
  3. High speed response (tPLH, tPHL : MAX. 0.5μs)
  4. Wide operating supply voltage range (VCC=15 to 35V)
  5. Low dissipation current (ICC=TYP. 1.3mA)
  6. High noise reduction type (CMR=MIN. 15kV/μs @ VCM=1500V)
  7. High isolation voltage (Viso=5kV)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Product Name PC923
Product Category MOSFET Driver Output IC
Package Type DIP-8
Mounting Style DIP
Number of Pins 8
Number of Channels 1
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x PC923 Photocoupler DIP-8 IC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1619
42 Items

Specific References

EAN13
1619
