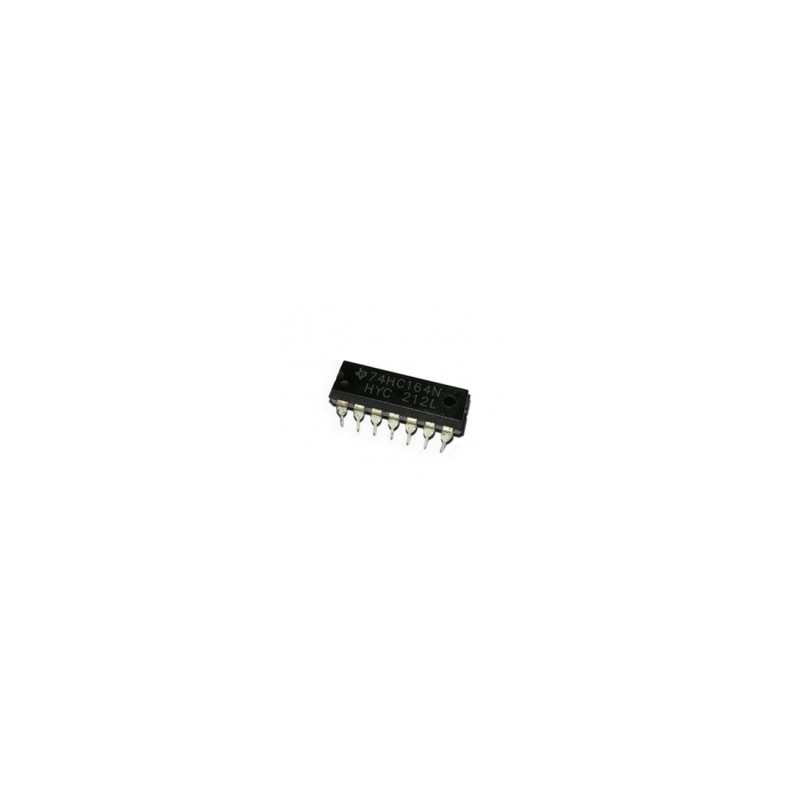

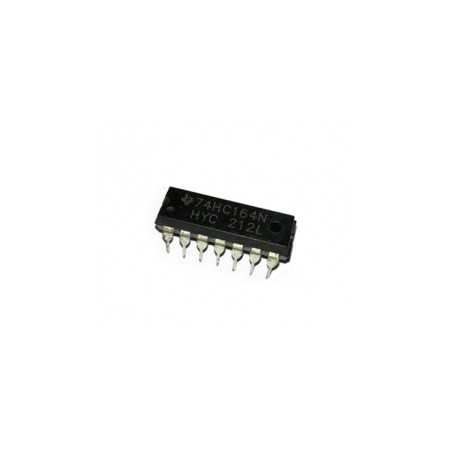

The SN74HC164N is an 8-bit parallel-out Serial Shift Register features AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data, a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking occurs on the low-to-high-level transition of CLK. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Outputs can drive up to 10 LSTTL loads
- Fully buffered clock and serial inputs
- Direct clear
- Green product and no Sb/Br
- Applications: Communications & Networking, Consumer Electronics, Imaging, Video & Vision
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case |
PDIP-14 |
| Mounting Type |
Through Hole |
| Product Series |
SN74HC164 |
| Input Voltage Range |
2 V to 6 V |
| Operating Temperature Range (°C) |
-40 to 125 |
| Number of Circuits |
1 |
| Logic Family |
74HC |
| Logic Type |
CMOS |
| Number of Input Lines |
2 |
| Propagation Delay Time |
175 ns, 35 ns, 30 ns |
| Number of Bits |
8 bit |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 74164 Shift Register
