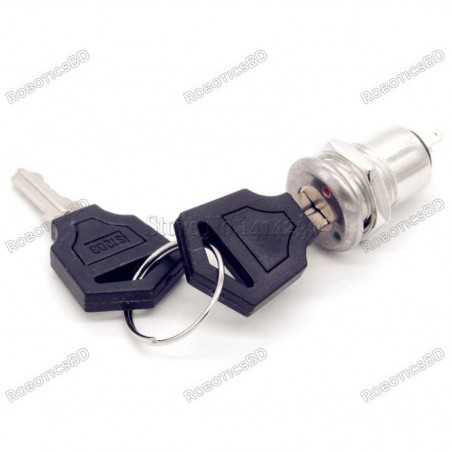

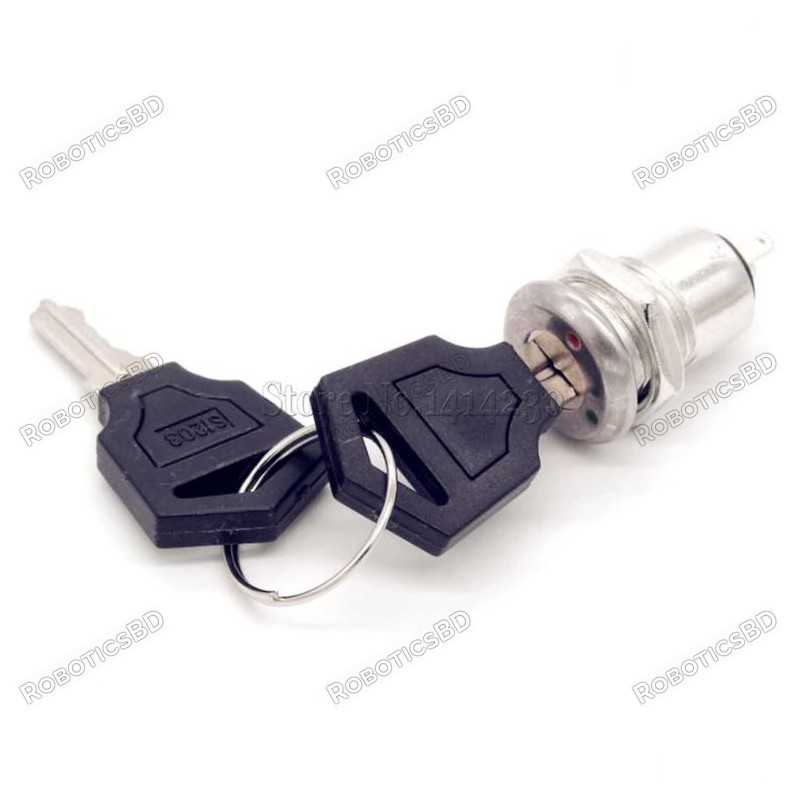

Have you ever wanted to start your widget the same way you start your car? These small switches are the key to making that happen. This simple ON-OFF switch can be used to power up your project with the turn of a key. At only 14.6mm across the top and 23mm long, it won't take up much space in your project enclosure. RoboticsBD
While the datasheet does rate these switches for 1A at 125VAC, we recommend using them as input switches or to switch small voltages, such as power to your Arduino. However they can be used to switch small amounts of power. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Zinc alloy die cast housing, Two terminals, in both positions.
- Keys can be taken off when the switch stays on or off position.
- Miniature keylock switch for simple locking and switching tasks.
- Current: 1A; Voltage : AC 220V / 380V
- Thread Dia(Approx.) : 11mm/0.43"
- Overall Size(Approx.) : 14 x 20mm/0.55" x 0.78"(D*L)
- Weight : 16g; Package Content : 2 x Keylock Switch
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operation Mode |
ON-NONE-OFF |
| Current Rating |
1 Amps |
| Operating Voltage |
220 Volts (AC), 380 Volts (AC) |
| Brand |
Generic |
| Terminal |
Solder |
| Material |
Plastic |
| Shipment Weight |
0.017 kg |
| Shipment Dimensions |
1.5 × 1.5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Key Switch Small.
