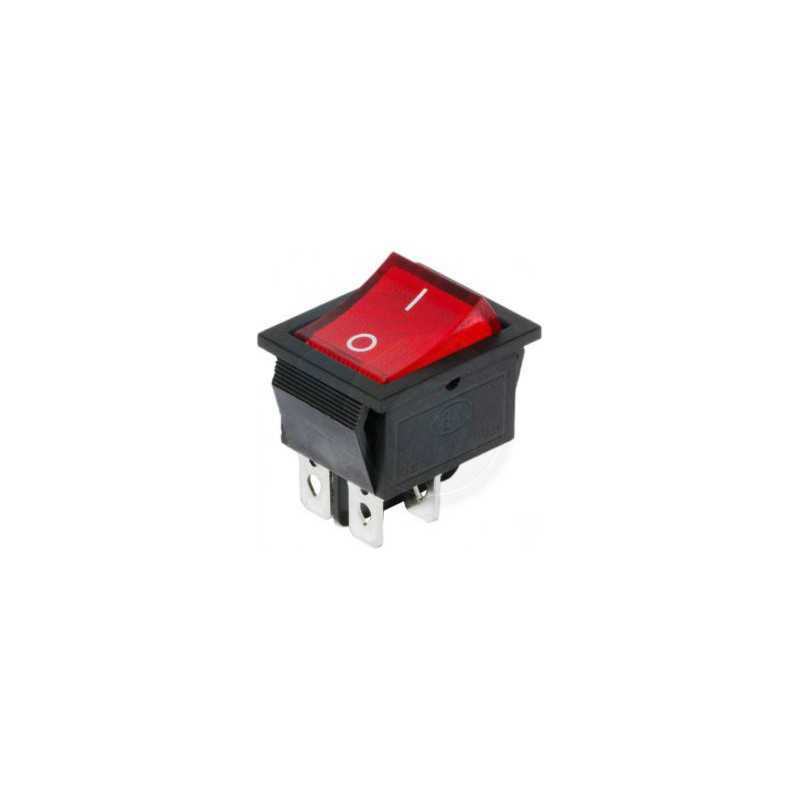

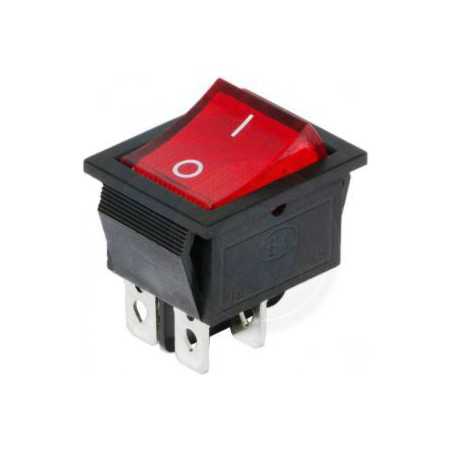

ON/OFF Switch 4pin

RBD-1509

  • Rating: Max 6A at 250VAC, 10A at 125VAC
  • Switching Mode: ON-OFF
  • Structure: SPDT
  • Panel Cut-Out: 17 x 13 mm
  • Material: Plastic and Metal
  • Colour: Black-red
  • Overall Dimensions: 21 x 15 x 16 mm (L x W x H)
BDT 30.00
BDT 30.00 BDT 30.00 BDT 30.00 BDT 30.00
Tax included Tax excluded Tax included Tax excluded
BDT 30.00 Tax excluded
BDT 30.00 Tax included
BDT 0.00 Tax
BDT 30.00 Tax excluded
BDT 0.00 Tax
BDT 30.00 Tax included
Quantity
In-Stock
37 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The KCD1 6A 250V SPDT ON-OFF Rocker Switch with Light is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are clearly marked which help users identify the current switch position during usage. RoboticsBD

This switch is great to turn on/off and control DC Motors in Robotics, Car and Motorcycle DC Motors, DC Motors in Industrial Machines, Water Dispensers, etc. We have sourced the best switch with a high load rating of 6A at 250VAC which should be suitable for most applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

  • Switching Mode: ON-OFF
  • Structure: SPDT

Features:

  1. Positions Marked on the rocker: I, O for easy identification
  2. Long Switching Life: 50000-100000 cycles
  3. Easy installation, No Screws or Nuts required
  4. Used widely for on/off power control, car, motorcycle, boat, some machines, water dispenser, etc.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Rating Max 6A at 250VAC, 10A at 125VAC
Switching Mode ON-OFF
Structure SPDT
Panel Cut-Out 17 x 13 mm
Material Plastic and Metal
Colour Black-red
Length (mm) 21
Width (mm) 15
Height (mm) 16
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x ON/OFF Switch 4pin
