REED SWITCH Robotics Bangladesh

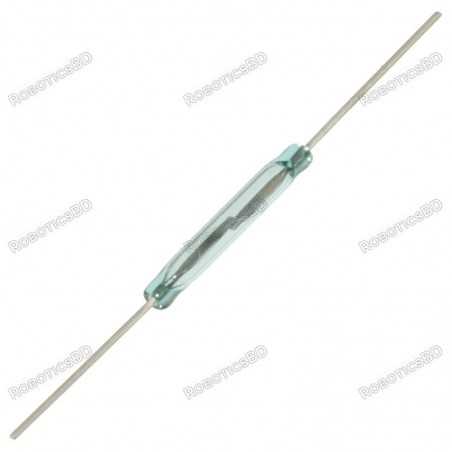

  • REED SWITCH Robotics Bangladesh
  • REED SWITCH Robotics Bangladesh

REED SWITCH

RBD-1507

  • Max. Switching Voltage: 300 VDC
  • Min. Breakdown Voltage: 150 VDC
  • Max. Contact Rating: 10W
  • Max. Switching Current: 0.55 A
  • Max. Operate time: 0.45 ms
  • Bounce time: 0.25 ms
  • Max. Release time: 0.35 ms
  • Resonant Frequency: 5000 HZ
  • Max. Operating Frequency: 400 HZ
  • Max. Contact Capacitance: 0.5 pF
BDT 20.00
BDT 20.00 BDT 20.00 BDT 20.00 BDT 20.00
Tax included Tax excluded Tax included Tax excluded
BDT 20.00 Tax excluded
BDT 20.00 Tax included
BDT 0.00 Tax
BDT 20.00 Tax excluded
BDT 0.00 Tax
BDT 20.00 Tax included
Quantity
In-Stock
78 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is Reed Switch  Switch with Normally Open Contact. RoboticsBD

When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch separates and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A.

This small and easy to use module can be used in a variety of environmental conditions, it operates very reliably in the -50°C to +140°C temperature range. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Small Module.
  2. Very easy to use.
  3. Direct connection in the circuit.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Glass Length: ..
Glass Diameter: ..
Total Length: ..
Max. Switching Voltage: 300 VDC
Min. Breakdown Voltage: 150 VDC
Max. Contact Rating: 10W
Max. Switching Current: 0.55 A
Max. Operate time: 0.45 ms
Bounce time: 0.25 ms
Max. Release time: 0.35 ms
Resonant Frequency: 5000 HZ
Max. Operating Frequency: 400 HZ
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x REED SWITCH Normally Open.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1507
78 Items

Specific References

EAN13
1507
