TL074CN is a JFET-input quad operational amplifier (op-amp) integrated circuit (IC). It is a high-speed, low-noise, and low-power op-amp that has four independent, internally-compensated, high gain amplifiers in a single package. It can be used for various applications such as amplifiers, filters, oscillators, and comparators. The TL074CN is commonly used in audio pre-amp, equalizer, and tone control circuits, as well as in other applications that require high-speed, low-noise op-amp performance.. RoboticsBD
The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Wide common-mode (up to VCC+) and differential voltage range
- Low input bias and offset current
- Low noise en = 15 nV/ √Hz (typ)
- Output short-circuit protection
- High input impedance JFET input stage
- Low harmonic distortion: 0.01% (typical)
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16 V/µs (typical)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Mounting Type |
Through Hole |
| Product Series |
Low-noise JFET quad operational amplifier |
| Weight (gm) |
1 (approx.) |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Package Includes:

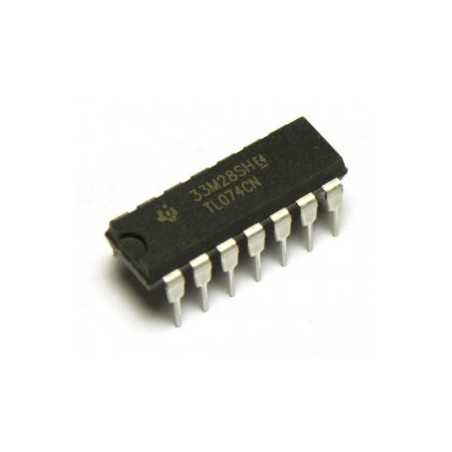

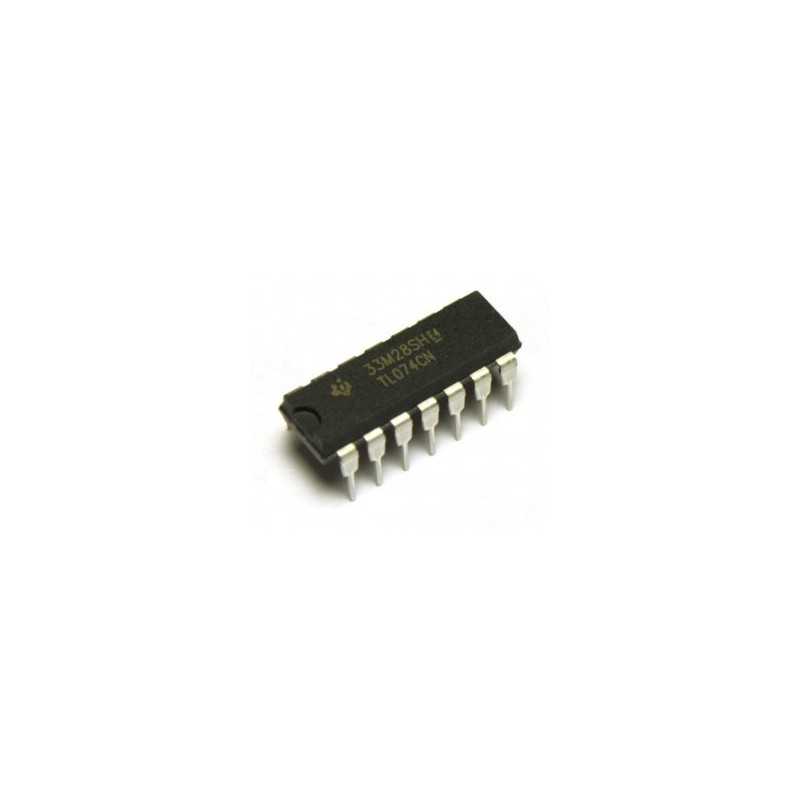

1 x TL074CN, DIP-14
