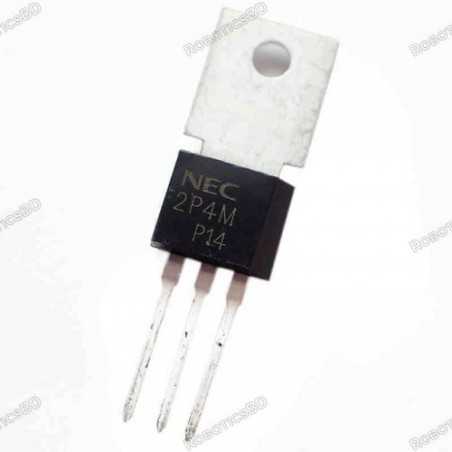

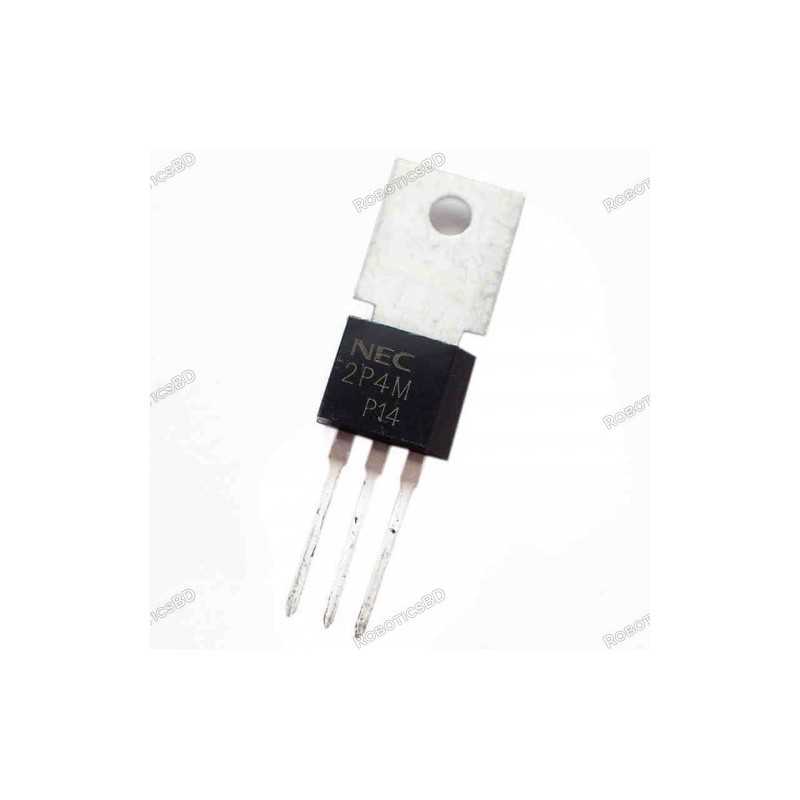

2P4M SCR THYRISTOR

RBD-1450

  • IC Name: 2P4M SCR THYRISTOR
  • Package/Case: DIP-3
BDT 40.00
BDT 40.00 BDT 40.00 BDT 40.00 BDT 40.00
Tax included Tax excluded Tax included Tax excluded
BDT 40.00 Tax excluded
BDT 40.00 Tax included
BDT 0.00 Tax
BDT 40.00 Tax excluded
BDT 0.00 Tax
BDT 40.00 Tax included
Quantity
In-Stock
24 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

2P4M is a solid state semiconductor device called Thyristor or SCR (Silicon Controlled Rectifier). The device is designed to have highly sensitive trigger levels and is suitable for applications where available gate currents are limited. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  1. Capacitor discharge ignitions
  2. Motor control
  3. Light dimmer
  4. Battery charger
  5. Various temperature control
  6. AC rectifiers
  7. RMS voltage switching
  8. Power converters
  9. Industrial switching

Features:

  1. Easy installation by its miniature size and thin electrode leads
  2. Low cost
  3. Less holding current distribution provides free application design
  4. Peak reverse blocking voltage: 500V
  5. Peak on-state current: 2A
  6. Peak gate current: 0.2A
  7. Peak gate reverse voltage: 6V
  8. Operating junction temperature range: -40ºC to +125ºC
  9. Storage temperature range: -55ºC to +150ºC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
VRSM 500
VDSM 500
VRRM 400
Product Type 2P4M SCR
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet
  2. Components101

2P4M Equivalent SCR:

  1. SN102, TIC206D, BT169, TYN604, 2N1596, 2N1595

Package Includes:

1 x 2P4M SCR THYRISTOR.
