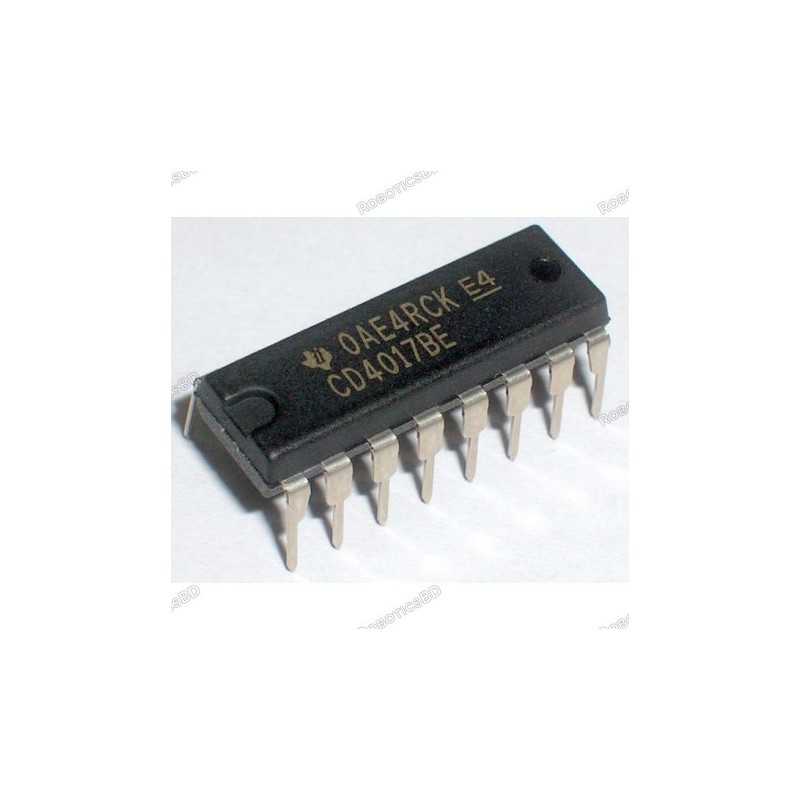

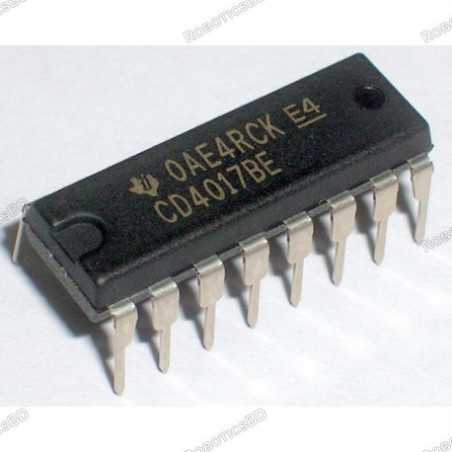

CD4017 Johnson Counter

RBD-1278

  • Wide supply voltage range from 2.0 V to 6.0 V
  • CMOS low power dissipation
  • High noise immunity
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
BDT 22.00
BDT 22.00 BDT 22.00 BDT 22.00 BDT 22.00
Tax included Tax excluded Tax included Tax excluded
BDT 22.00 Tax excluded
BDT 22.00 Tax included
BDT 0.00 Tax
BDT 22.00 Tax excluded
BDT 0.00 Tax
BDT 22.00 Tax included
Quantity
In-Stock
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The CD4017 is the one of the most popular 16 pin CMOS Decade Counter (Divided by 10 Counter). It takes clock signal from the clock input and turns on the 10 output in sequence, each time when it receives clock input pulses. It is a 5 Stage Divide by 10 Johnson Counter with 10 Decoded outputs. It has a wide supply voltage range from 3V to 15V and is compatible with TTL. It has a medium speed of operation, typically 5Mhz. A popular IC, CD4017 is extremely useful in various projects like Light Chaser, Matrix Die. It is also useful in many applications like Binary counter/decoder, frequency division, divide by N counting, industrial electronics, remote metering, automotive, medical electronics, instrumentation and alarm systems, etc. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Wide supply voltage range from 2.0 V to 6.0 V
  2. CMOS low power dissipation
  3. High noise immunity
  4. Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
  5. Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
  6. Input levels: For 74HC4017: CMOS level For 74HCT4017: TTL level
  7. ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
  8. Multiple package options
  9. Specified from -40 °C to +85 °C and from -40 °C to +125 °C

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-16
Minimum Supply Voltage (V) 2
Maximum Supply Voltage (V) 6
Product Type Johnson decade counter with 10 decoded outputs
Operating Temperature Range (°C) -45 to 85
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentations:

  1. Datasheet

Package Includes:

1 x CD4017 Johnson Counter.
