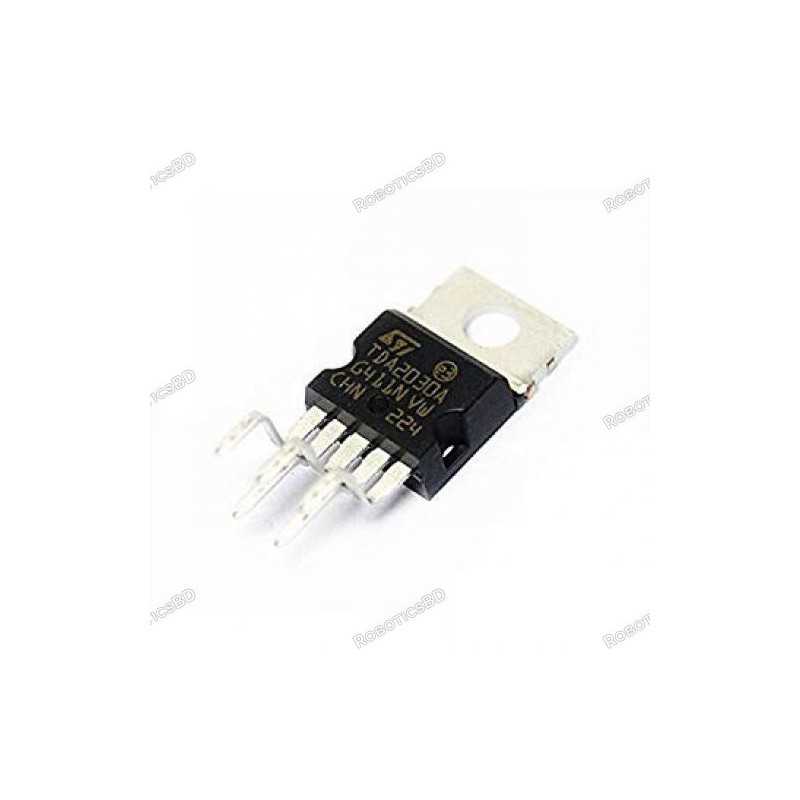

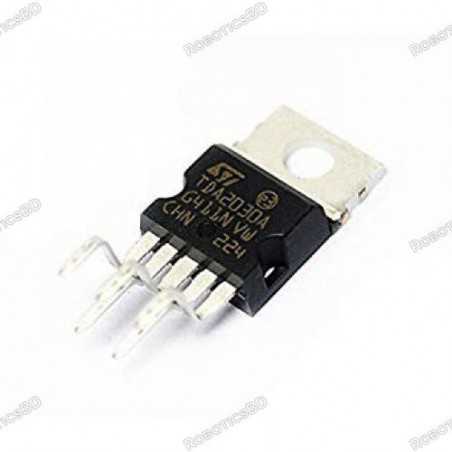

TDA2030A

RBD-1433

  • IC Name: TDA2030A
  • Package/Case: DIP-3
BDT 25.00
BDT 25.00 BDT 25.00 BDT 25.00 BDT 25.00
Tax included Tax excluded Tax included Tax excluded
BDT 25.00 Tax excluded
BDT 25.00 Tax included
BDT 0.00 Tax
BDT 25.00 Tax excluded
BDT 0.00 Tax
BDT 25.00 Tax included
Quantity
In-Stock
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

TDA2030 is an audio amplifier which provides an output power of 14 Watts. It has internal protection system against short-circuits and overloads which limits the dissipated power. It is basically designed for use in applications requiring a class AB amplifier of a low frequency. TDA2030 audio amplifier amplifies the audible signals from any audio device for example microphone by enhancing its volume when that sound is played on a speaker. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

TDA2030 Pinout Diagram

Pinout diagram is very simple and it contains only five pins.

Pin Configuration Details

  1. It has two inputs namely inverting input and non-inverting input which are applied at pin 1 and pin 2.
  2. Pins 3 and 5 are the voltage supply pins and are connected to the negative and positive terminals of a battery.
  3. The output is obtained at pin 4.

Features:

  1. Output power 18 W at VS = ±16 V / 4 Ω with 0.5% distortion
  2. High output current
  3. Very low harmonic and crossover distortion
  4. Short-circuit protection
  5. Thermal shutdown

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-3
Minimum Supply Voltage (V) 6
Maximum Supply Voltage (V) 22
Product Type TDA2030A 18 W hi-fi amplifier and 35 W driver
Operating Temperature Range (°C) –40° C to +150° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x TDA2030A
