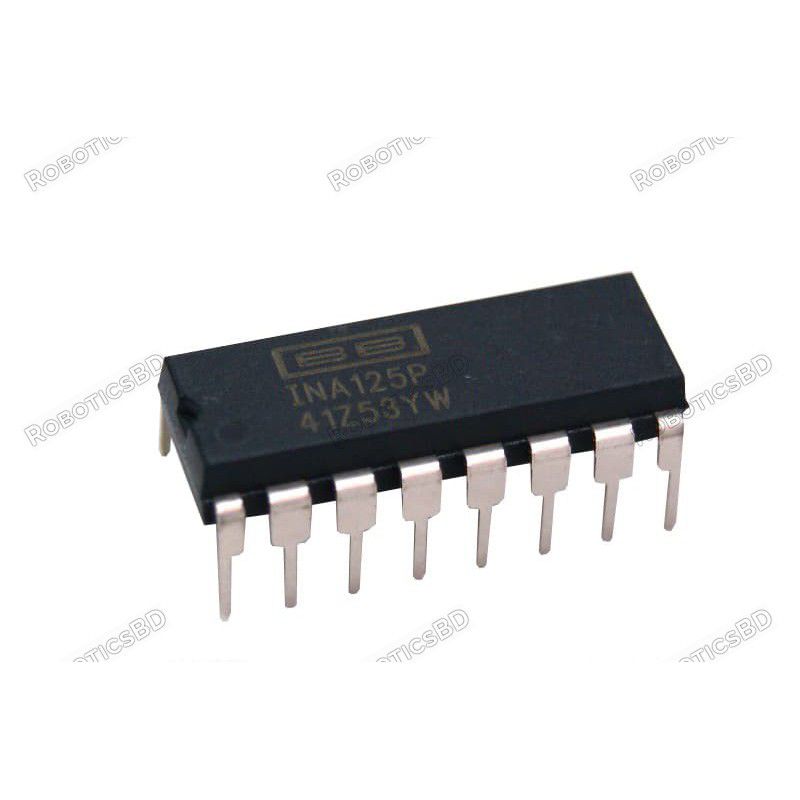

INA125P Instrumentation Amplifier With Precision Voltage Reference

RBD-0276

The INA125 is a low-power, high-accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit. A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on either single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies.

BDT 1,150.00
BDT 1,150.00 BDT 1,150.00 BDT 1,150.00 BDT 1,150.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,150.00 Tax excluded
BDT 1,150.00 Tax included
BDT 0.00 Tax
BDT 1,150.00 Tax excluded
BDT 0.00 Tax
BDT 1,150.00 Tax included
Quantity
In-Stock
7 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The INA125 is a low-power, high-accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit. A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on either single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies.

The voltage reference is externally adjustable with pin-selectable voltages of 2.5V, 5V, or 10V, making it compatible with various transducers. The reference voltage is accurate to ±0.5% (max) with ±35ppm/°C drift (max). A sleep mode allows for shutdown and duty cycle operation to save power.

The INA125 is available in 16-pin plastic DIP and SO-16 surface-mount packages and is specified for the industrial temperature range of –40°C to +85°C.


INA125 Instrumentation Amplifier with Precision Voltage Reference IC. The INA125 is a low power, high accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

APPLICATIONS:

  1. PRESSURE AND TEMPERATURE BRIDGE
  2. AMPLIFIERS
  3. INDUSTRIAL PROCESS CONTROL
  4. FACTORY AUTOMATION
  5. MULTI-CHANNEL DATA ACQUISITION
  6. BATTERY OPERATED SYSTEMS
  7. GENERAL PURPOSE INSTRUMENTATION

Datasheet:

  1. Instrumentation Amplifier with Precision Voltage Reference datasheet

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
LOW QUIESCENT CURRENT: 460µA
PRECISION VOLTAGE REFERENCE: 1.24V, 2.5V, 5V or 10V
SLEEP MODE Yes
LOW OFFSET VOLTAGE: 250µV max
LOW OFFSET DRIFT: 2µV/°C max
LOW INPUT BIAS CURRENT: 20nA max
HIGH CMR: 100dB min
LOW NOISE: 38nV/√Hz at f = 1kHz
INPUT PROTECTION TO ±40V
WIDE SUPPLY RANGE Yes
Single Supply: 2.7V to 36V
Dual Supply: ±1.35V to ±18V
16-PIN DIP AND SO-16 SOIC PACKAGES Yes
Shipment Weight 0.001 kg
Shipment Dimensions 3 x 3.5 x 0.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x INA125P IC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0276
7 Items

Specific References

EAN13
0276
