Digital Auto Counter Meter with Infrared Proximity Sensor 24V Robotics Bangladesh
  • Digital Auto Counter Meter with Infrared Proximity Sensor 24V Robotics Bangladesh
  • Digital Auto Counter Meter with Infrared Proximity Sensor 24V Robotics Bangladesh

Digital Auto Counter Meter with Infrared Proximity Sensor 24V

RBD-2183

  • Digital auto counter meter with infrared proximity sensor
  • 24V power supply
  • Adjustable sensing range from 3 to 80 cm
  • Easy to mount chassis
  • Diffuse reflective type light source
  • DC 3-wire NPN-NO output
  • Sensory distance regulator and output LED indicator
BDT 2,400.00
BDT 2,400.00 BDT 2,400.00 BDT 2,400.00 BDT 2,400.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,400.00 Tax excluded
BDT 2,400.00 Tax included
BDT 0.00 Tax
BDT 2,400.00 Tax excluded
BDT 0.00 Tax
BDT 2,400.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Digital Auto Counter Meter with Infrared Proximity Sensor 24V is a versatile tool that can be used for a variety of applications. The infrared proximity sensor can be used to detect objects within a certain range, and the digital counter can be used to measure the number of objects detected. The meter is powered by 24V, making it suitable for use in a variety of environments. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Digital auto counter meter
  2. Infrared proximity sensor
  3. 24V power supply
  4. Adjustable sensing range from 3 to 80 cm
  5. Easy to mount chassis
  6. Diffuse reflective type light source
  7. DC 3-wire NPN-NO output
  8. Sensory distance regulator and output LED indicator

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Counting objects
  2. Determining the distance to an object
  3. Monitoring the presence of an object
  4. Other applications that require an infrared proximity sensor and a digital counter

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification

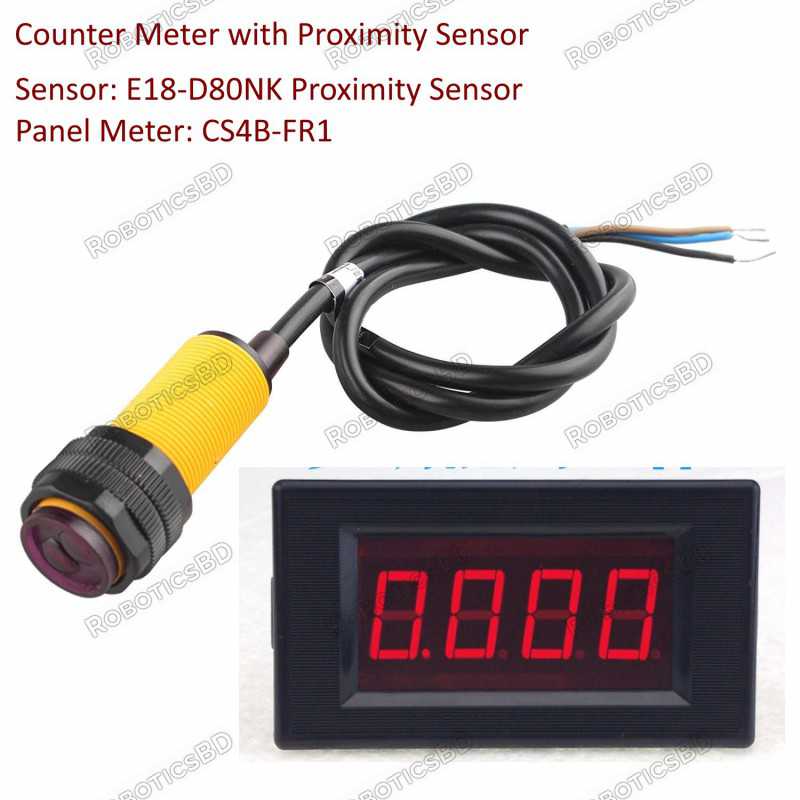

Sensor Model E18-D80NK
Panel Meter CS4B-FR1
Power Supply 24V
Sensing Range 3cm to 80cm (depends on obstacle surface)
Input Voltage 5VDC
Current Consumption 100mA
Dimension 1.7cm (D) x 4.3cm (L)
Type DC 3 Wire NPN-NO (Normal Open)
Sensory distance regulator and output LED indicator Yes
Control signal level High2.3V≤Vin≤5V Low-0.3V≤Vin≤1.5V
Shipment Weight 0.083 kg
Shipment Dimensions 14 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Connect the sensor to the counter meter. The sensor has three wires: brown (power), black (ground), and blue (signal). The brown wire should be connected to the power input on the counter meter, the black wire should be connected to the ground input on the counter meter, and the blue wire should be connected to the signal input on the counter meter.
  2. Adjust the detect distance. The detect distance is the distance at which the sensor will detect an object. To adjust the detect distance, use the VR potentiometer on the sensor. Turn the potentiometer clockwise to increase the detect distance and counterclockwise to decrease the detect distance.
  3. Power on the counter meter. The counter meter will start counting when it is powered on.
  4. Place an object in front of the sensor. When an object is placed in front of the sensor, the counter meter will start counting. The number on the counter meter will increase as the object gets closer to the sensor.
  5. Remove the object from the sensor. When the object is removed from the sensor, the counter meter will stop counting.

Warnings:
  1. Do not use the sensor to detect objects that are too close or too far away.
  2. Do not use the sensor in environments with strong light or other interference.
  3. Do not expose the sensor to water or other liquids.

Additional Information:
  1. The Digital Auto Counter Meter with Infrared Proximity Sensor 24V is a great tool for a variety of applications.
  2. The sensor is easy to mount and use.
  3. The meter is accurate and easy to read.
  4. The counter meter can count up to 9999.
  5. The detect distance can be adjusted from 3 cm to 80 cm.
  6. The sensor is powered by 5VDC.

Package Includes:

1 x Digital Auto Counter Meter

1 x Infrared Proximity Sensor
