DC 0-100V 100A Voltage and Current Dual LED Display Panel Meter Robotics Bangladesh
  • DC 0-100V 100A Voltage and Current Dual LED Display Panel Meter Robotics Bangladesh

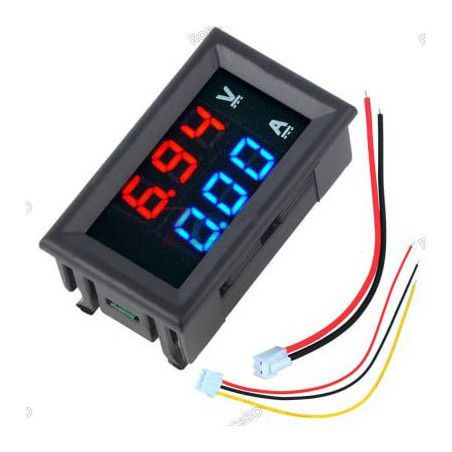

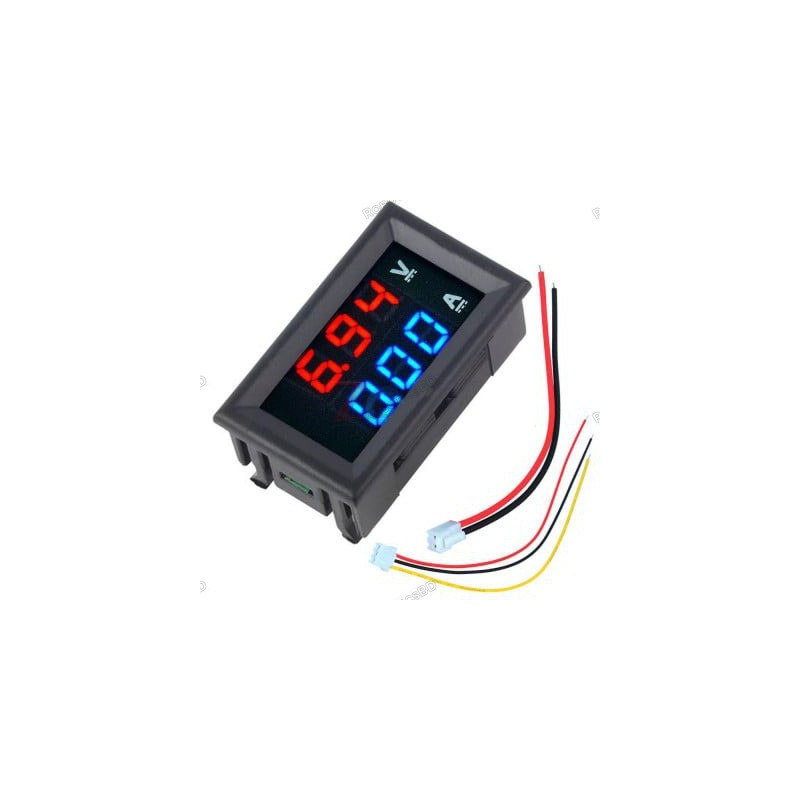

DC 0-100V 100A Voltage and Current Dual LED Display Panel Meter

RBD-2686

  1. Operating current: 20mA
  2. Operating voltage: DC 4.5 ~ 30V
  3. Minimum resolution(V): 0.1V
  4. Minimum resolution(A): 0.01A
  5. Display color: Red and Blue (two-color display)
  6. Measure accuracy: 1%

  7. Dual Led 0.28 ” Display for DC0-100V 100A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 100A
BDT 350.00
BDT 350.00 BDT 350.00 BDT 350.00 BDT 350.00
Tax included Tax excluded Tax included Tax excluded
BDT 350.00 Tax excluded
BDT 350.00 Tax included
BDT 0.00 Tax
BDT 350.00 Tax excluded
BDT 0.00 Tax
BDT 350.00 Tax included
Quantity
16 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Display Voltage and current simultaneously in different colors, red for Voltage and blue for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other product’s voltage current measurement

Features:

  1. Rapid response recovery characteristics.
  2. It Has a long life and reliable stability.
  3. High precision, four digital displays.
  4. Minimum resolution(V): 0.1V
  5. Minimum resolution(A): 0.01A
  6. Display: three 0.28″ LED digital tube
  7. Display color: Red and Blue (two-color display)
  8. Mounting cutout: 45.5 x 26.5mm
  9. Refresh rate: about 500mS / times
  10. Operating temperature: -10 to 65ºc
  11. Operating Humidity: 10 to 80% (non-condensing)

Package Includes:

1 x Dual Led 0.28 ” Red Blue Display for DC.0-100V 100A Voltage and Current Test Digital Instrument.

Product Details
RBD-2686
16 Items

Specific References

EAN13
2686
