Genuine LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply Robotics Bangladesh
  • Genuine LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply Robotics Bangladesh

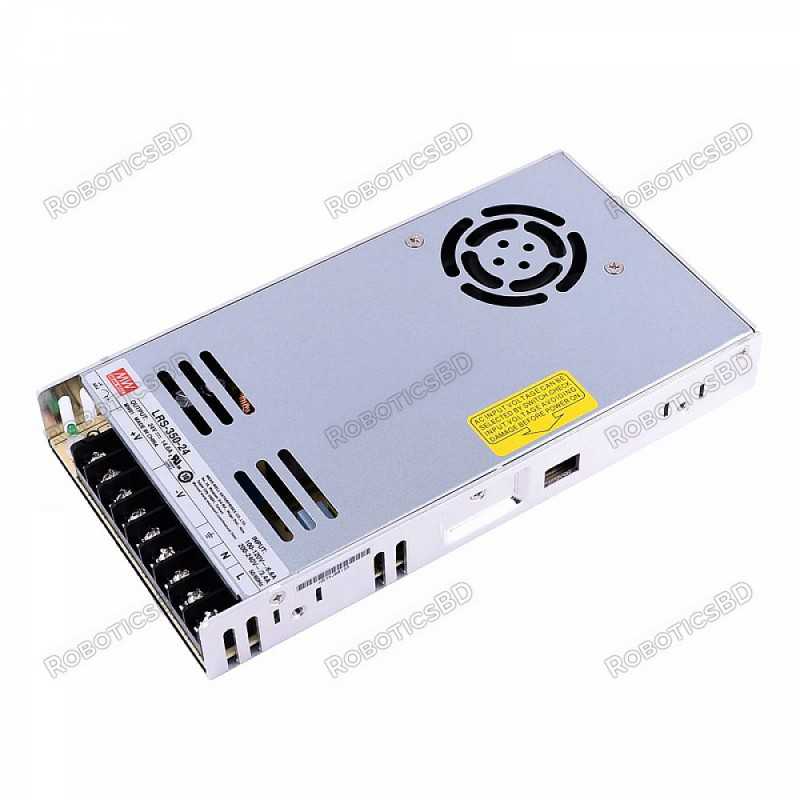

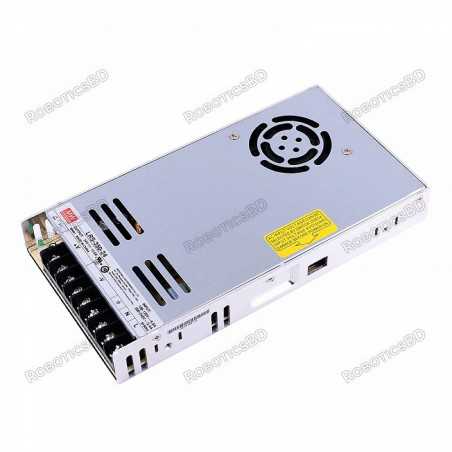

Genuine LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply

RBD-2512

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC / UL 62368-1.
LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications

BDT 5,950.00
BDT 5,950.00 BDT 5,950.00 BDT 5,950.00 BDT 5,950.00
Tax included Tax excluded Tax included Tax excluded
BDT 5,950.00 Tax excluded
BDT 5,950.00 Tax included
BDT 0.00 Tax
BDT 5,950.00 Tax excluded
BDT 0.00 Tax
BDT 5,950.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC / UL 62368-1.
LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

  • Brand: MEANWELL
  • 24V DC 14.6A output
  • AC input voltage range: 90 ~ 220VAC
  • Rated power: 350.4W
  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • Built-in cooling Fan ON-OFF control
  • 1U low profile
  • Withstand 5G vibration test
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • High operating temperature up to 70℃
  • Operating altitude up to 5000 meters (Note.8)
  • High efficiency, long life and high reliability

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus

Resources

Product Details
RBD-2512
2 Items

Specific References

EAN13
2512
Comments (0)
Grade
No customer reviews for the moment.
