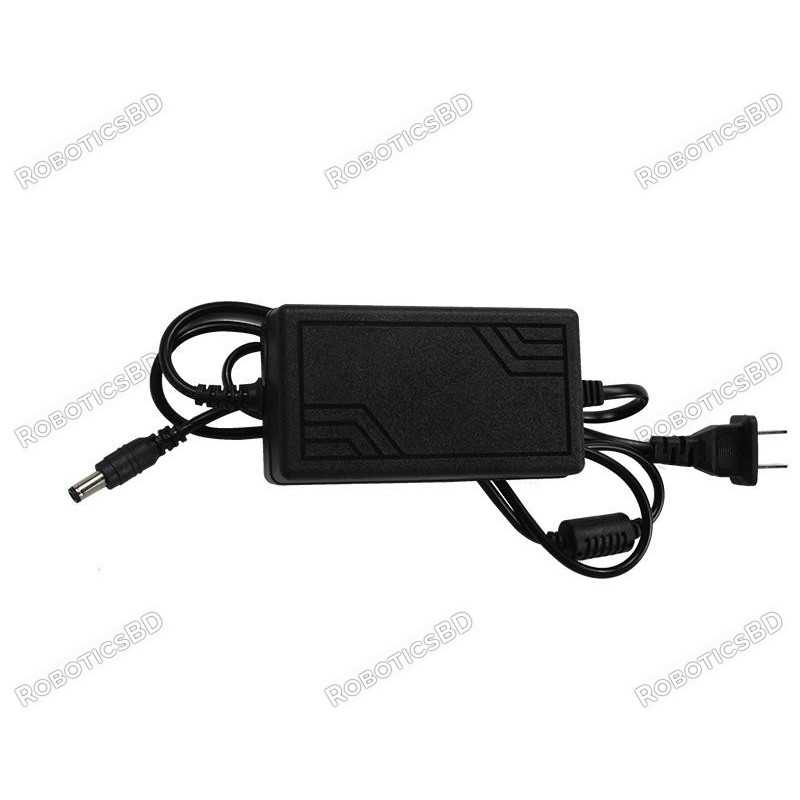

NVIDIA Jetson Nano 5V 4A DC Power Adapter

RBD-1414

  • Input Voltage (V): 100 ~ 270 VAC @50 ~ 60Hz.
  • Input current (mA): 100.
  • Output Power: 5V 4A.
  • Load regulation (%): ±5.
  • Input Plug: 2-Pin US type.
  • Output Plug: DC Jack 5.5mm.
BDT 1,150.00
BDT 1,150.00 BDT 1,150.00 BDT 1,150.00 BDT 1,150.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,150.00 Tax excluded
BDT 1,150.00 Tax included
BDT 0.00 Tax
BDT 1,150.00 Tax excluded
BDT 0.00 Tax
BDT 1,150.00 Tax included
Quantity
In-Stock
35 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Since the micro USB interface of Jetson Nano only supports 2A current, when we use other devices with the Jetson Nano, such as fan, 7-inch display, camera and so on. They will not work properly due to the insufficient power supply. We launch this 5V 4A DC power adapter, which can provide more current and more stable voltage for the Jetson Nano. It can meet the needs of the Jetson Nano for most occasions, and drive the camera, display and other USB external devices, etc. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: When using a DC power supply, the user needs to short the J48 with a jumper cap according to the official Jetton Nano manual. RoboticsBD

Features:

  1. The adapter is easy to use.
  2. It comes with a long wire.
  3. Wide input voltage range (100VAC-280VAC).
  4. Very low no-load power consumption.
  5. Very low ripple & noise output for device safety.
  6. Protections against- under-over voltage/ overload/ short circuit with auto-restart on fault removal.
  7. Thermal shut down (140°C) with auto-restart on cold condition.
  8. Soft start & low inrush current.
  9. Isolation up to 3kv for 5sec.time period.
  10. High operating ambient temperature up to 60°C.
  11. Highly efficient, compact, durable and long life.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage (V AC) 100 ~ 260
Input current (mA) 100
Output Voltage(V) 5
Max. Output Current (A) 4
Output Power(Watt) 15
Load regulation (%) ±5
Input Plug 2-Pin US type
Output Adapter Type (mm) 5.5 x 2.5
Connecting cable Length (m) 1.1
Operating Temperature (°C) -25 to +60
Length (mm) 73
Width (mm) 46
Height (mm) 32
Weight (gm) 100
Shipment Weight 0.180 kg
Shipment Dimensions 14 × 7 × 7 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 74147 Encoder.
