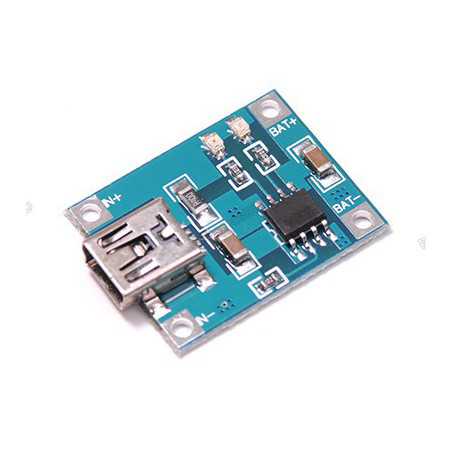

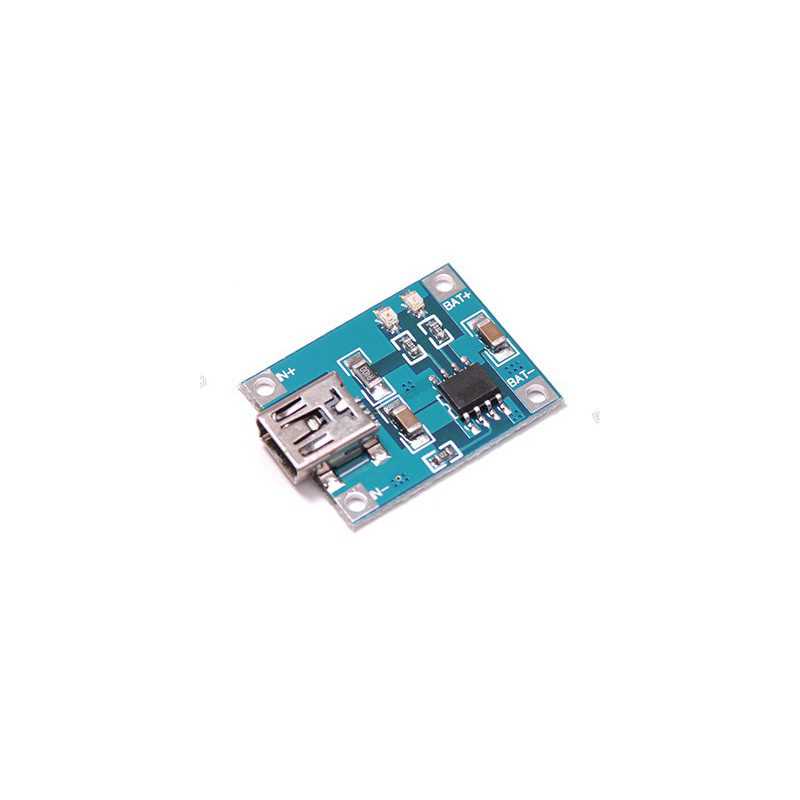

TP4056 5V Mini USB Charger Module
  • TP4056 5V Mini USB Charger Module

TP4056 5V Mini USB Charger Module

RBD-0388

  • Input voltage : 4.5V ~ 5.5V.
  • Input Interface: Micro USB port.
  • Charging method: linear charge.
  • A full charge voltage: 4.2V. RoboticsBD
  • Power: 4.2 w.
  • Charging accuracy: 1.5%.
  • Operating Temperature: -10 to +85ºC
  • Charging indicator: Blue LED charging, Red LED full
Check out New Product
TP4056 Lithium Battery Charger Module With Protection Dual Functions
BDT 30.00
BDT 30.00 BDT 30.00 BDT 30.00 BDT 30.00
Tax included Tax excluded Tax included Tax excluded
BDT 30.00 Tax excluded
BDT 30.00 Tax included
BDT 0.00 Tax
BDT 30.00 Tax excluded
BDT 0.00 Tax
BDT 30.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

(Retired) This product has been replaced by newer version. This page is made available for those looking for datasheets and the simply curious.

The TP4056 1A Li-Ion Lithium Battery Charging Module – Mini B USB is a 3.7V lithium battery charger module has onboard Mini USB interface. With Mini-USB onboard connector, you can directly connect to computer USB port for battery charging. If USB is not available you can use an external source voltage at IN+/IN- pads, great for DIY projects. It is small size and lightweight.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note:

  1. This breakout board does not have Overcurrent protection.
  2. Connect Ampere meter in series with 5V input end.
  3. The charging current is best to be 0.37 times of the battery capacity,
  4. Charging wire can’t be too thin or too long while interfacing.
  5. Make sure the board has good contact with the battery.
  6. Chip at work about 60 degrees fever is normal. RoboticsBD
  7. Input reverse connection has no effect on the chip. Rather the output (battery’s) reverse connection will burn out the chip.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Charging indicator: RED LED charging, BLUE LED full Charged
  2. Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below.
  3. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
  4. Fully machinery automated processing, all patch parts manufacturing. RoboticsBD
  5. Charging current can be adjusted by just changing the circuit board’s fixed resistors. It can change the output to the 100mA-1000mA, very conveniently.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Charging accuracy (%) 1.5
Charging method Linear
Full Charge Voltage (V) 4.2
Height (mm) 6
Input Voltage (V) 4.5-5.5
Length (mm) 25
Operating Temperature (°C) -10 to 85
Rated Power (W) 4.2
Weight (gm) 3
Width (mm) 19
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 2 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x TP4056 5V Mini USB Charger Module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0388

Specific References

EAN13
0388
