LM1084 5A Low Dropout Positive Regulator Robotics Bangladesh
  • LM1084 5A Low Dropout Positive Regulator Robotics Bangladesh

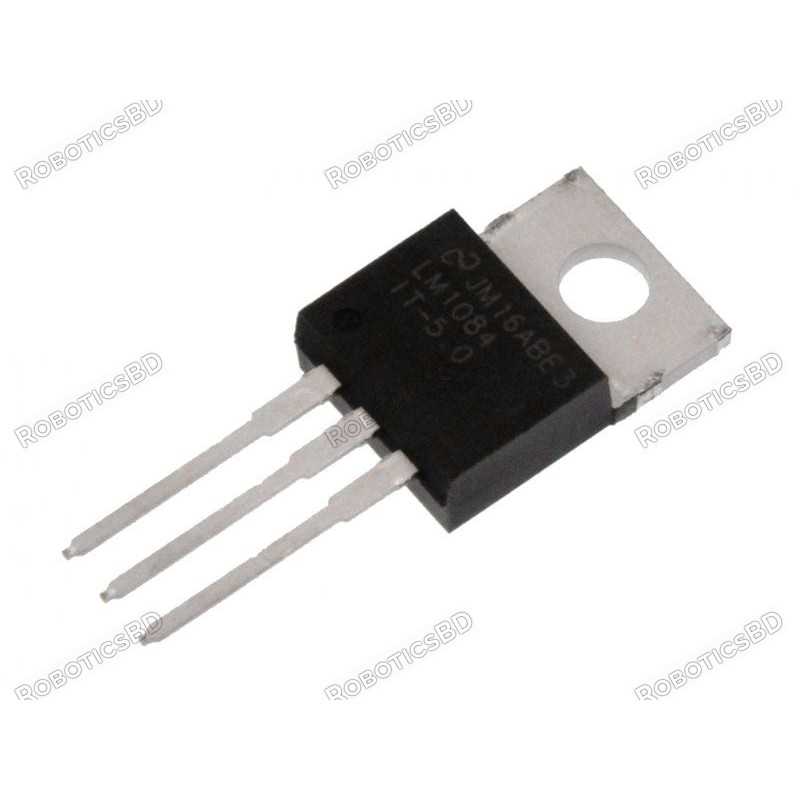

LM1084 5A Low Dropout Positive Regulator

RBD-1688

  • LM1084
  • 5A
  • Low Dropout
  • Positive Regulator
BDT 35.00
BDT 35.00 BDT 35.00 BDT 35.00 BDT 35.00
Tax included Tax excluded Tax included Tax excluded
BDT 35.00 Tax excluded
BDT 35.00 Tax included
BDT 0.00 Tax
BDT 35.00 Tax excluded
BDT 0.00 Tax
BDT 35.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The LM1084 is a series of low dropout voltage positive regulators with a maximum dropout of 1.5V at 5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. RoboticsBD

The LM1084 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions intergrate the adjust resistors. RoboticsBD

The LM1084 circuit includes a Zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1084 series is available in TO-220 and TO-263 packages. Refer to the LM1085 for the 3A version, and the LM1086 for the 1.5A version.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Post Regulator for Switching DC/DC Converter
  2. High Efficiency Linear Regulators
  3. Battery Charger

Features:

  1. Available in 3.3V, 5.0V, 12V and Adjustable Versions
  2. Current Limiting and Thermal Protection
  3. Output Current 5A
  4. Industrial Temperature Range −40˚C to 125˚C
  5. Line Regulation 0.015% (typical)
  6. Load Regulation

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case TO-220
Minimum Output Voltage (V) 3.270
Maximum Output Voltage (V) 3.365
Product Type LM10845A Low Dropout Positive Regulators
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x LM1084 5A Low Dropout Positive Regulator.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1688
4 Items

Specific References

EAN13
1688
