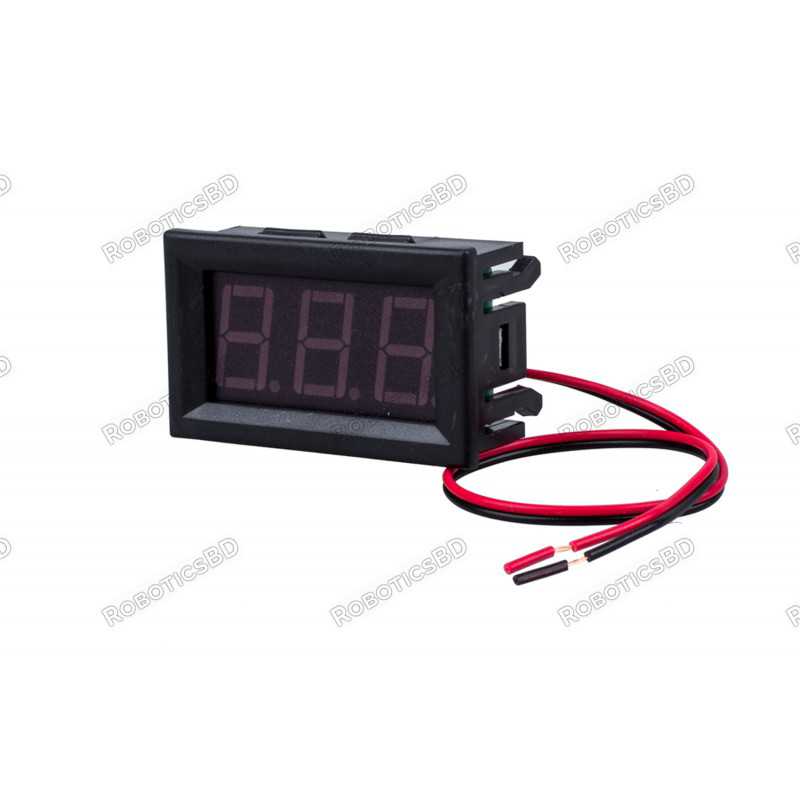

The wiring of this voltmeter is simple, only two wires need to be connected, the red wire is connected to the positive, and the black wire is connected to the negative. There is reverse connection protection in the meter, and the reverse connection does not burn.
This voltmeter does not require an external working power supply, it can work directly with the measured voltage, and the working voltage range is as wide as 4-30V
In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the difference of the measured voltage. decimal point.
This voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc., and grasp the battery status in time. It can also be used for other voltage measurement purposes. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Consider the 1V voltage drop at the voltmeter itself, as we observed it at our labs while testing this Voltmeter.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Product Type | DC Voltmeter |
Operating Voltage (VDC) | 4-30 VDC |
Average Current Consumption (mA) | Less than 20mA, generally 5-15mA |
Full Refresh Time (s) | Approx 300mS/time. |
Display color | Red |
Accuracy | 0.1 V |
Working Voltage | 4-30V |
Product Color | black |
Weight (g) | 20g |
Shipment Weight | 0.02 kg |
Shipment Dimensions | 10 × 6 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x DC 4-30V Voltmeter LED Display Panel
