Multifunctional Tester LCR-T7

RBD-1323

  • 160x128 TFT display Multi function key.
  • Transistor test area.
  • Zener Diode test area.
  • IR receiver window.
  • Micro USB Charging Interface.
  • Charge indicator LED.
BDT 2,600.00
BDT 2,600.00 BDT 2,600.00 BDT 2,600.00 BDT 2,600.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,600.00 Tax excluded
BDT 2,600.00 Tax included
BDT 0.00 Tax
BDT 2,600.00 Tax excluded
BDT 0.00 Tax
BDT 2,600.00 Tax included
Quantity
In-Stock
27 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

LCR-T7, Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, BJT, resistor and capacitor and other components, etc. The Tester has a Built-in lithium battery, convenient and effective, the indicator light shows green when fully charged. Warm Reminder: The charging input voltage is 4.5V, please do not use it under overpressure, otherwise, the tester will be damaged over its 3 inches full-colour LCD display. RoboticsBD

After the component detection is completed, the infrared remote control at the tester “IR” test hole, press the remote control key, the tester will display the user code & data code and the corresponding infrared waveform after the successful decoding.

Additionally, this tester comes with an automatic shutdown function and manual shut-down function. Use accessories, more convenient and efficient to complete your project. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

How To Use:
  1. Put the component in the Zip socket and press the locking latch.
  2. After placing the component in the Zip socket press the start button.
  3. After some time the appropriate value and the type of the component are displayed on the display.

Features:

  1. 3″ Colourful display
  2. Can be used to detect NPN-PNP transistors, capacitors, resistors, MOSFET, etc.
  3. Comes with a self-calibration function
  4. One Button Operation
  5. Automatic detect and shutdown

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Measurable Components Resistor, capacitor, inductor, thyristor, triac, (double)
diode, Z-diode, field effect
transistor, bipolar transistor, infrared decoder
Supported IR-protocol NEC (used by many
manufacturers)
Display type 1.8 " TFT LCD (160 x 128 p)
Special features Automatic calibration,
One key operation
Built-in battery Lithium Ion rechargeable,
3,7 V, 350 mAh
Size 90 x 70 x 27 mm

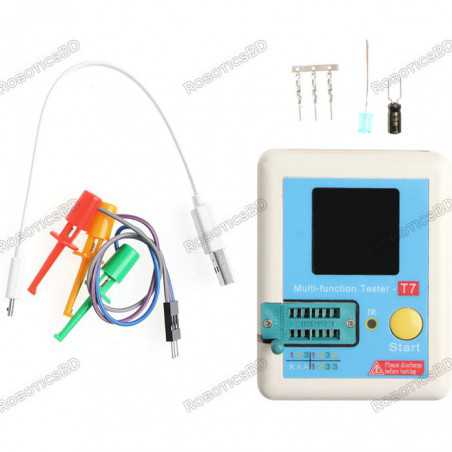

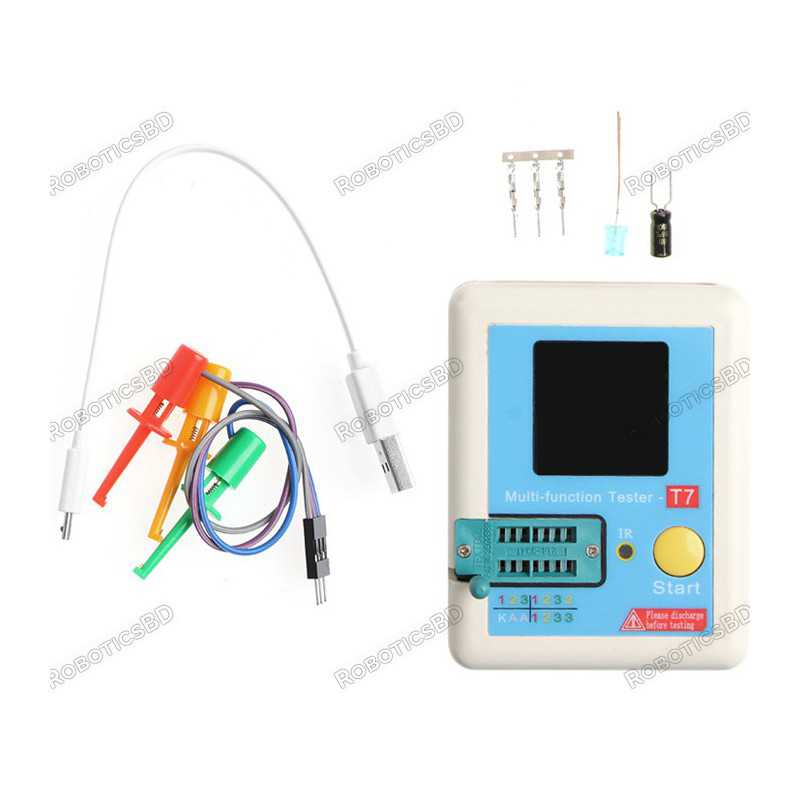

Items delivered Tester, USB cable, Test clip,
LED, Capacitor
Shipment Weight 0.205 kg
Shipment Dimensions 9 × 7 × 2.7 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. MULTI-FUNCTIONAL TESTER Manual
  2. MULTI-FUNCTIONAL TESTER Manual
  3. Guide

Package Includes:

1 x TC-T7-H Full-Color, Multifunction Tester Unit

1 x USB cable

3 x Test Leads.
