16 Pin DIP IC Socket Base Adaptor Robotics Bangladesh
  • 16 Pin DIP IC Socket Base Adaptor Robotics Bangladesh

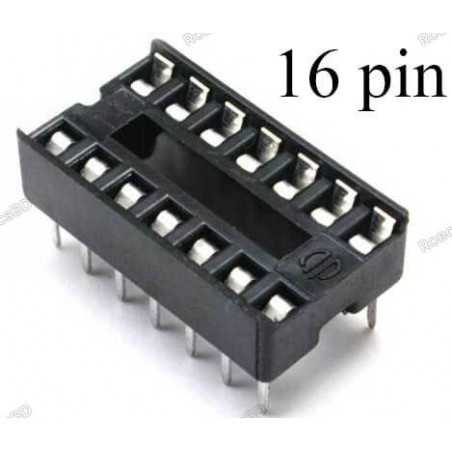

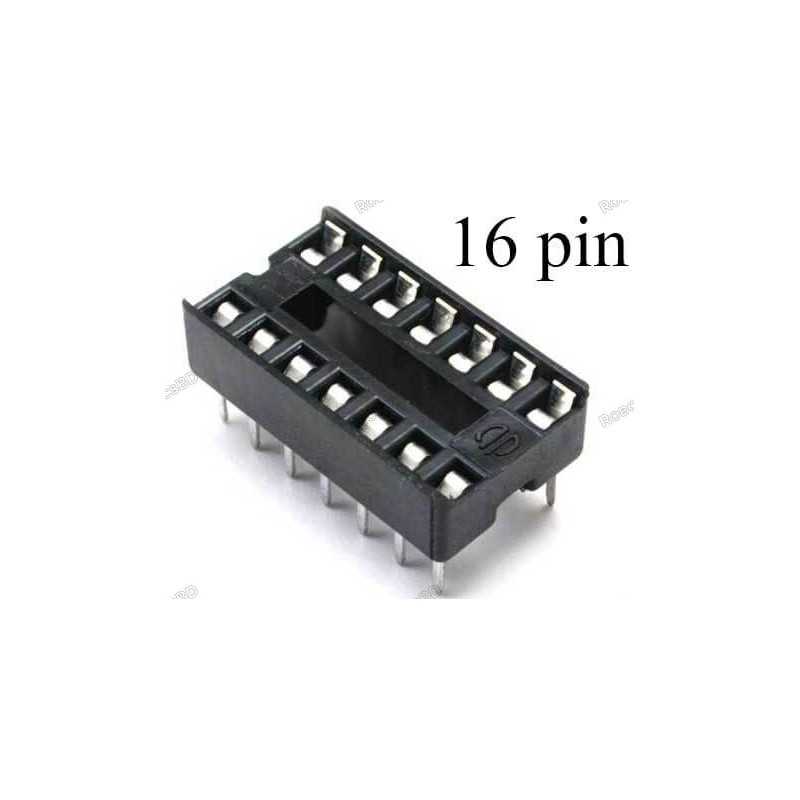

16 Pin DIP IC Base/Socket

RBD-1715

  • 16 pins.
  • Molded notch for proper orientation.
  • Easy to insert and remove ICs.
BDT 10.00 BDT 10.00 BDT 10.00 BDT 10.00 BDT 10.00
BDT 7.00 Save BDT 3.00
BDT 7.00 BDT 7.00 BDT 7.00 BDT 7.00
Tax included Tax excluded Tax included Tax excluded
BDT 10.00 BDT 7.00 Tax excluded
BDT 10.00 BDT 7.00 Tax included
BDT 0.00 BDT 0.00 Tax
BDT 10.00 BDT 7.00 Tax excluded
BDT 0.00 BDT 0.00 Tax
BDT 10.00 BDT 7.00 Tax included
Quantity
In-Stock
568 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

16 Pin IC Socket base adaptor is a 16 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder.

The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 16 pins.
  2. JDEC compliant.
  3. Molded notch for proper orientation.
  4. Easy to insert and remove ICs.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Current Handling Capacity (A) 1
No. of Contact Points 16
Contact Material Phosphor Bronze
Contact Plating Tin
Operating Temperature Range (°C) -25 to 85
Flammability Rating UL94V-0
Color Black
Insertion Force 340g max per contact
Exertion Force 80g max per contact
Length (mm) 20
Width (mm) 10
Height (mm) 4
Weight (gm) 1 (approx.) (each)
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Included:

1 x 16 Pin DIP IC Socket Base Adaptor
