The SN54/74LS83A is a high-speed 4-Bit binary Full Adder with internal carry lookahead. It accepts two 4-bit binary words (A1–A4, B1–B4) and a Carry Input (C0). It generates the binary Sum outputs ∑1–∑4) and the Carry Output (C4) from the most significant bit. The LS83A operates with either active HIGH or active LOW operands (positive or negative logic). The SN54/74LS283 is recommended for new designs since it is identical in function with this device and features standard corner power pins.
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 4-BIT BINARY FULL ADDER WITH FAST CARRY
- LOW POWER SCHOTTKY
- Outputs Directly Interface to CMOS, NMOS and TTL
- Wide Operating Conditions
- Large Operating Voltage Range
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case |
PDIP-16 |
| Minimum Supply Voltage (V) |
4.75 |
| Maximum Supply Voltage (V) |
5.25 |
| Product Type |
4-BIT BINARY FULL ADDER WITH FAST CARRY |
| Operating Temperature Range (°C) |
–55° C to +125° C |
| Mounting Type |
Through Hole |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:

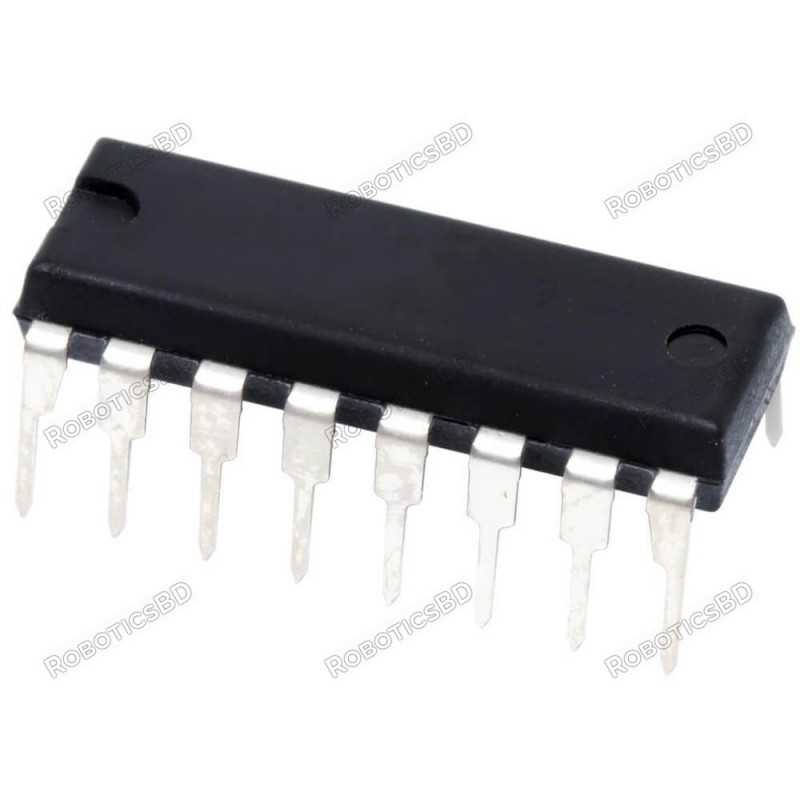

1 x 74LS83A 4-BIT Binary Full Adder (IC 7483)
