The CD4028BM/CD4028BC is a BCD-to-decimal or binary-to-octal decoder consisting of 4 inputs, decoding logic gates, and 10 output buffers. A BCD code applied to the 4inputs, A, B, C, and D, results in a high level at the selected1-of-10 decimal decoded outputs. Similarly, a 3-bit binary code applied to inputs A, B, and C is decoded in octal at outputs 0–7. A high level signal at the D input inhibits octal decoding and causes outputs 0–7 to go low. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Wide supply voltage range3.0V to 15V
- High noise immunity0.45 VDD(typ.)
- Low power TTL compatibility: fan out of 2 driving 74Lor 1 driving 74LS
- Low power
- Glitch free outputs
- ‘‘Positive logic’’ on inputs and outputs
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case |
PDIP-16 |
| Minimum Supply Voltage (V) |
3 |
| Maximum Supply Voltage (V) |
15 |
| Product Type |
CD4028BM/CD4028BC BCD-to-Decimal Decoder |
| Operating Temperature Range (°C) |
-45 to 85 |
| Mounting Type |
Through Hole |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:

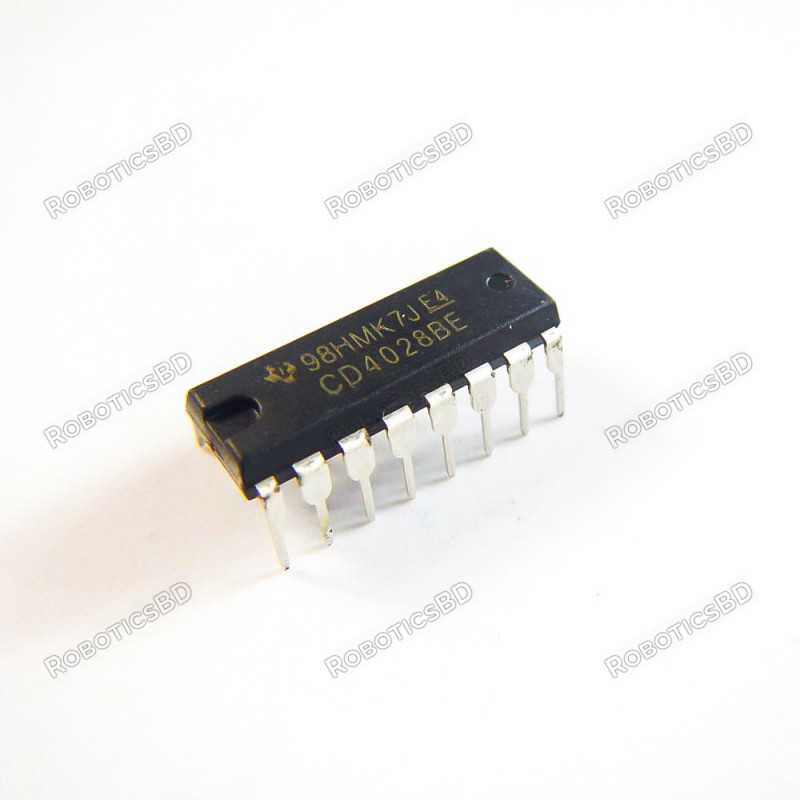

1 x 4028 Decoder (CD4028BM/CD4028BC BCD-to-Decimal Decoder)
