Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera NTSC PAL Switchable
  • Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera NTSC PAL Switchable
  • Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera NTSC PAL Switchable

Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera NTSC PAL Switchable

RBD-0378

  • Model: Eachine 1000TVL 1/3 CCD
  • Lux: 0.08Lux/ F1.2
  • Sensor: 1/3 “CCD
  • Format: NTSC/PAL(Free switch)
  • Resolution: a.Ultra High Definition 1000TVL
  • b.PAL: 976H X 582V
  • c.NTSC: 976H X 494V
  • Lens: 2.8mm IR coated. RoboticsBD
  • FOV: 110 °
BDT 2,500.00
BDT 2,500.00 BDT 2,500.00 BDT 2,500.00 BDT 2,500.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,500.00 Tax excluded
BDT 2,500.00 Tax included
BDT 0.00 Tax
BDT 2,500.00 Tax excluded
BDT 0.00 Tax
BDT 2,500.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

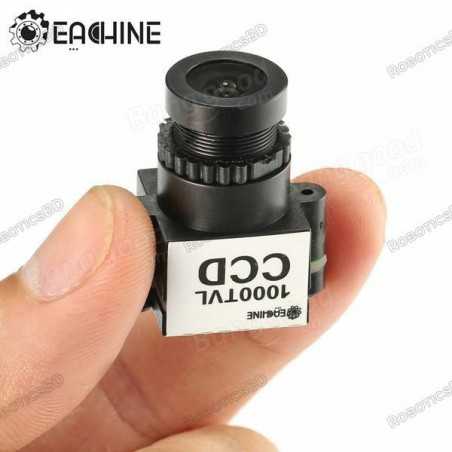

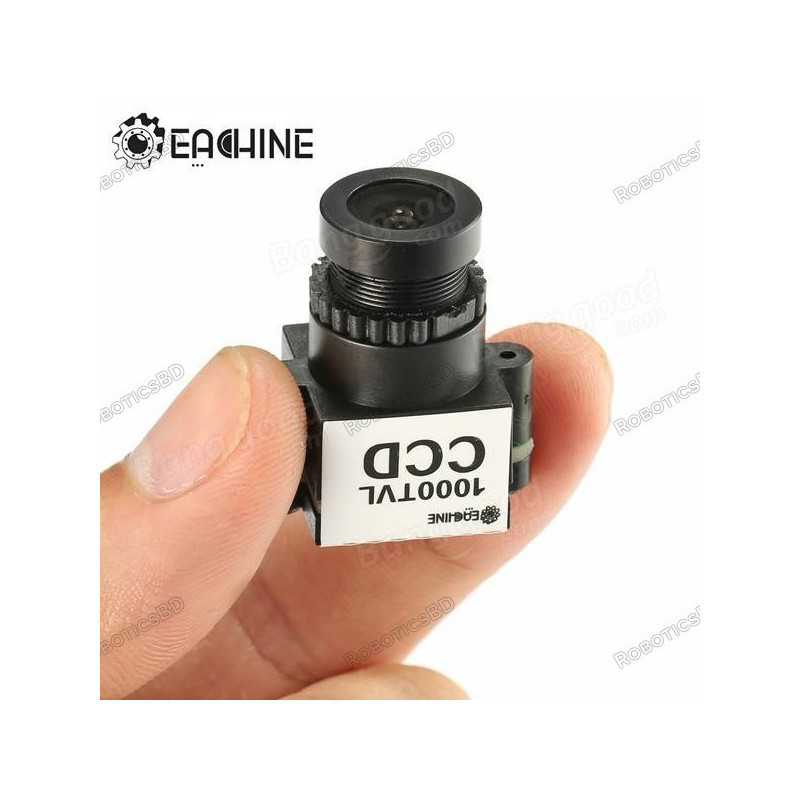

This is a new High Definition Eachine 1000 TVL Camera 2.8mm Lens FPV Camera for FPV RC Drone Quadcopter. It adopts a 1/3 CCD sensor, low illumination reaches up to 0.08Lux/ F1.2,  easy to set up parameters. RoboticsBD

With wide operating voltage from 5 to 12V power, due to the CCD chip inside it can be a very good choice for your Drone/Multicopter for Video recording and Imaging. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

























Note: The transmitter module and antenna showed in the picture
are not included in the package. RoboticsBD







Features:

  1. With 1/3” CCD sensor
  2. With lens cover, well protecting the lens
  3. With WDR function in the default
  4. Without OSD
  5. Super lightweight,ultra-low power consumption, suitable for RC multicopter

Specification:

  1. Item Name: Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera
  2. Input Voltage: 5-20V
  3. Power Consumption: 105mA-27mA
  4. Lux: 0.08Lux/ F1.2
  5. Sensor: 1/3 “CCD
  6. Format: NTSC/PAL(Free switch)
  7. Resolution: a.Ultra High Definition 1000TVL
    b.PAL: 976H X 582V
    c.NTSC: 976H X 494V
  8. Lens: 2.8mm IR coated
  9. FOV: 110 °
  10. Operating temperature: 0 to 40°C
  11. Camera size: 28 * 24.5 * 17.5mm
  12. Lens Size: 17mm *14mm
  13. The screw of Lens: M12
  14. Net Weight: 10.4g ( not including the box and cable) RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Item Name Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera
Input Voltage: 5-20V
Resolution: Ultra High Definition 1000TVL
Lens Size: 17mm *14mm
Camera size: 28 * 24.5 * 17.5mm
Shipment Weight 0.015 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 1000TVL FPV Camera
1 x Cable
1 x Lens Cover.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0378

Specific References

EAN13
0378
