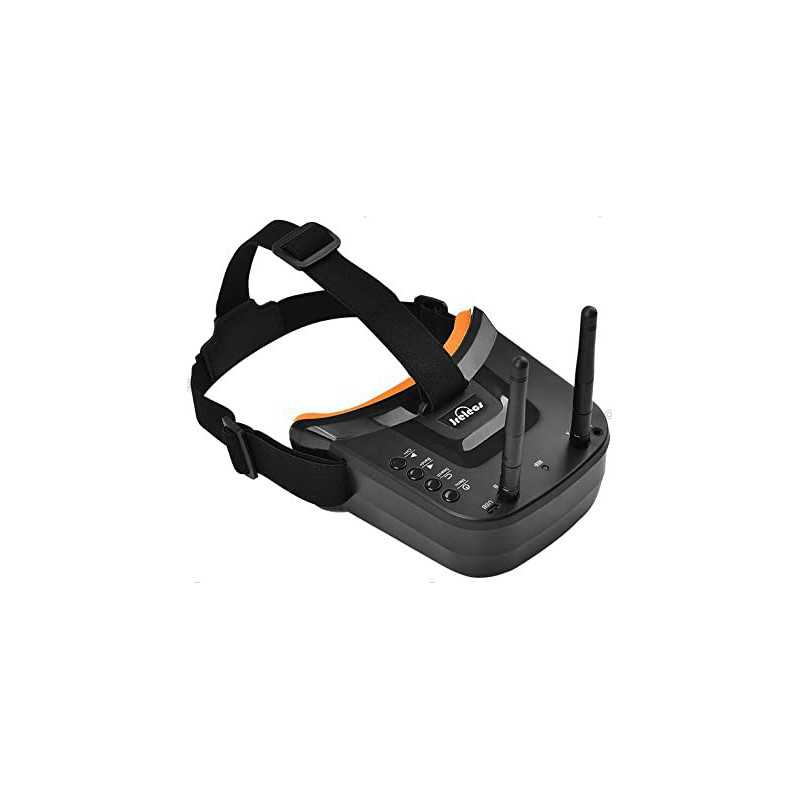

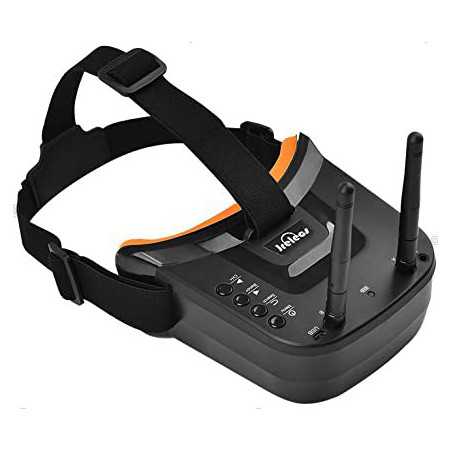

This mini set of FPV goggles offer a 3.00 inch 480x320pc 16:9 resolution screen with 40ch auto scanning dual antenna receiver and built-in battery for an incredibly low price. Ideal for beginners or as a second set of goggles for observers. These goggles are set to be the best value goggles of 2018. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Product Name | Mini FPV Goggles |
Screen size: | 3.0 Inch |
Resolution: | 480*320 |
Display Ratio: | 16:9 |
View Angle: | 6 o'clock |
Brightness: | 350cd/m² with high brightness backlight LED |
Video delay | Video time-delay less than 20ms |
Lens | 4X Fresnel Lens, 92% transparent rate no distort of light |
Antenna | 2 X RP-SMA male |
USB | To charge the battery |
AV Jack | External video signals input or internals AV signal output |
Languages | English and Chinese |
Power adapter: | DC5V/1A (USB interface) |
Battery: | 3.7V/1200mAh,Each full charge revive around 2.5hr working time |
Power Consumption: | *The device operating current of 360~400mA at 3.7~4.2V; *Built-in battery maximum charge current of 500mA; |
Dimension: | 13.5cm * 13.2cm * 6.5cm |
Weight: | 183g(with headband, not included antennas) |
Shipment Weight | 0.250 kg |
Shipment Dimensions | 13.5 × 13.5 × 6.5 cm |
Frequency Table(MHz) | ||||||||
CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x FPV Goggle with 5.8G 40CH Receiver.
