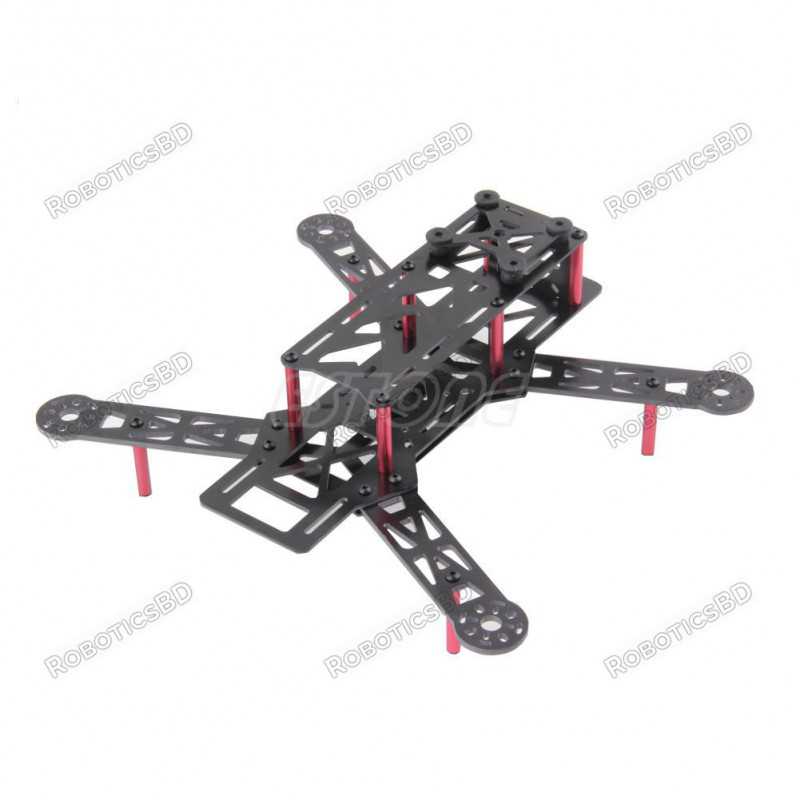

The QAV250 is a mini-size quadcopter frame. This frame is built specifically to tackle the problems in FPV Racing and video recording with quadcopters. This frame is known for its toughness and durability. RoboticsBD
This QAV250 Quadcopter Frame is made from Carbon Fiber which makes it tough and durable. The carbon fiber arms of thickness 3mm which ensure no more arm breakage at the motor mounts on a hard landing. The arms have dampers at the end, which protects motors during the crash.
The carbon fiber is mostly accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance. RoboticsBD
The frame is lightweight and possesses thick arms, so as to give them good mechanical strength. The mini-size design of this quadcopter frame makes it aerodynamically efficient which will require lower throttle to hover. The design allows the whole take-off weight to be controlled at about 500-600 grams.
The frame has a wheelbase of 250mm and weighs around 160gm. It features a very large area on the mainframe for mounting cameras and other accessories. This frame supports 37mm board cams as well as cams in cases with mounting bracket.
It’s longer top and bottom plate allow easy mounting of HD cameras and batteries. so more spacious room for all kinds of electronics!!! RoboticsBD
This is a Kit come as unassembled. RoboticsBD
Features :
- Lightweight and Durable.
- Made by super strong and advanced engineering material.
- The frame has excellent strength.
- The arm has multiple motor mounting holes.
- Equips vibration-free mounting bracket for FPV camera. RoboticsBD
| General Specification |
| Model |
QAV250 |
| Material |
Carbon Fiber |
| Wheelbase (mm) |
250 |
| Height (mm) |
80 |
| Weight (gm) |
160 |
| Arm Size (L x W) mm |
114 x 25 |
| Motor Mounting Hole Dia. (mm) |
3 |
| Shipment Weight |
0.17 kg |
| Shipment Dimensions |
21 × 9 × 4 cm |
Package Includes :
3 x Quadcopter Frame Plates(top, bottom, and center).
4 x Strong carbon fiber arm.
8 x Aluminum column.
4 x Rubber Shock absorbing Ring.
1 x Camera lens holder.
1 x Carbon fiber spacer mountings.
Set of Screws and Nuts
Recommendation (NOT Included ) :
- Propeller: 5″ or 6″ Propeller (CW & CCW)
- Battery: 3S LiPo (1800 – 2200mAh)
- ESC: 15A -25A.
- Motor: 800-1000 KV (brushless dc motor)
- Power Distribution Board(PDB)
