If you are wandering to make a hexacopter drone but don’t know what is the best Frame. So, here is the solution for you. This is made up of Glass Fiber + Polyamide-Nylon which makes the frame stronger and it can weigh up to 1200-2400 grams. RoboticsBD
This is Hexacopter Frame that employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.
For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries. This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motors, a hexacopter is also more stable than your quadcopter equivalent. RoboticsBD
Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter. RoboticsBD

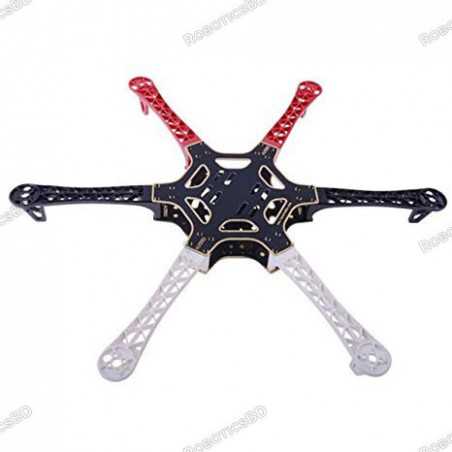

This F550 Hexa-Copter Frame is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.
The arms of the frame are colored as 2-red, 2-white, and 2-black which can guide you to fly in the right direction. The design allows the whole take-off weight to be controlled at about 1200-2400 gm.
The F550 Glass Fiber Mini Quadcopter Frame is strong, light, and has a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The F550 Quadcopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.
The frame has a wheelbase of 550mm and weighs around 620gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories.
It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within a few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature of the Q450 Quadcopter Frame makes them so easy to assemble and disassemble.
Such a lighter weight, higher strength Aerodynamic structure of this F550frame featuring PA66 arms with glass fiber integrated frame make it the first choice of our customer. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: The dimensions and weight may have ±2% error.
Features :
- Made by advanced engineering material, super strong & smooth
- Easy to assemble and disassemble.
- The frame is tough and durable.
- The main glass fiber frame has good strength.
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- In-built power distribution board.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
F550 |
| Material |
Glass Fiber + Polyamide Nylon |
| Wheelbase (mm) |
550 |
| Weight (gm) |
620 |
| Arm Size (L x W) mm |
220 x 40 |
| Motor Mounting Hole Dia. (mm) |
3 |
| Landing Gear Material |
ABS Plastic |
| Landing Gear Height (mm) |
200 |
| Landing Gear Color |
Black |
| Landing Gear Weight (gm) |
75 |
| Shipment Weight |
0.7 kg |
| Shipment Dimensions |
23 × 12 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x F550 quadcopter Frame(Top and Bottom) with Integrated PCB.
6 x F550 arms (Red+White+Black).
2 x Accessories set.
