Skydroid 5.8G 150CH Full Channel UVC Dual Antenna Control Receiver OTG FPV Receiver

RBD-2167

  • Skydroid 5.8G 150CH Full Channel UVC Dual Antenna Control Receiver OTG FPV Receiver
  • Designed for Android phones with UVC support and OTG compatibility
  • Dual antenna design for improved signal stability
  • Channel waveform display and channel adjustment button added for convenience
  • Supports audio playback through the app
  • Automatic scanning mode activated by long-pressing any button
BDT 4,490.00
BDT 4,490.00 BDT 4,490.00 BDT 4,490.00 BDT 4,490.00
Tax included Tax excluded Tax included Tax excluded
BDT 4,490.00 Tax excluded
BDT 4,490.00 Tax included
BDT 0.00 Tax
BDT 4,490.00 Tax excluded
BDT 0.00 Tax
BDT 4,490.00 Tax included
Quantity
In-Stock
9 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Skydroid 5.8G 150CH Full Channel UVC Dual Antenna Control Receiver is a specialized device designed for FPV (First Person View) applications. It is compatible with Android phones that support UVC (USB Video Class) and have OTG (On-The-Go) capabilities. The receiver features dual antennas for enhanced signal stability and a button for convenient channel adjustment. It also incorporates a channel waveform display for visual feedback. Additionally, the receiver supports audio playback through the accompanying app. By long-pressing any button, users can activate the automatic scanning mode for easy channel selection. It is important to note that phones with Qualcomm CPUs are generally compatible, although some devices may require enabling the OTG function in the phone settings. The compact and lightweight design of the receiver makes it portable and easy to use. The package includes the ROTG02 FPV receiver, RP-SMA antennas, and USB cables.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Full Channel UVC OTG FPV Receiver for Android phones
  2. Dual antenna design for improved signal stability
  3. Channel adjustment button for convenient channel selection
  4. Channel waveform display for visual feedback
  5. Audio playback support through the app
  6. Long-press any button to activate automatic scanning mode
  7. Compatible with Android phones featuring Qualcomm CPUs
  8. OTG function may need to be enabled in phone settings
  9. Compact and lightweight design for portability
  10. Package includes the ROTG02 FPV receiver, RP-SMA antennas, and USB cables

Notice:
  1. An antenna has been added to a single antenna receiver to provide more stable signals
  2. Add a button to make it more convenient to adjust the channel
  3. Increase the function of channel waveform display
  4. Adding app audio playback
  5. Long press any button to enter the automatic scanning mode
  6. Mobile phones with For qualcomm CPU support almost all *Some phones need to open the OTG function in the settings

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. First Person View (FPV) drone flying
  2. Aerial photography and videography
  3. FPV racing
  4. Remote control hobbyist activities
  5. Real-time video transmission and monitoring

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Product Name Skydroid 5.8G 150CH Full Channel UVC Dual Antenna Control Receiver OTG FPV Receiver
Model ROTG02
Channel 150CH
Frequency Range 5645~5945 MHz
Sensitivity -90dBm
Working Current 300mA/5V
Power Supply 5V (by smart phone)
Operating Temperature -10~60°C
Connector RP-SMA Female
Weight About 35g
Size 614111 mm
Color Black/White
Shipment Weight 0.150 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Here's the phone list support this receiver that we have test
  1. Sumsung: S3 (I9300, I9308), S4 (I9500, I9507V, I9508, S5, S6, S6,  edge+, S7edge,  NOTE3, NOTE4, NOTE5, A5100, A8000, ON7, P600, N7100, N5100, Tab S2.
  2. OPPO:A31,A31C,A33,A51,A53,A33M,A51,A53,A5M,N3,FIND7,R7005, R7007,3007,R2017,R8000,R8205,R8207,R7SM,R7 PLUS,R9 PLUS
  3. XIAOMI: XIAOMI 3,XIAOMI 4,XIAOMI 4C,XIAOMI5,XIAOMI pad, XIAOMI Red Note, XIAOMI Red Note3
  4. HUAWEI: MATE8, C199,Honor8 For LG:GPRO2,G3,NEXUS5,L24,GPAD8.3
  5. Motorola: XPRO,NEXUS6,MOTO E,MZ617
  6. Sony: Z1,Z2,Z3,C3,SGP321

Note:
  1. There are 2 same connecters on USB cable, but in different function.
  2. One side is special for mobile, the other is special for receiver.
  3. Please connect them correctly. If it doesn't work , please try to plug them in reverse.
Downloads:
  1. Documentation
  2. App

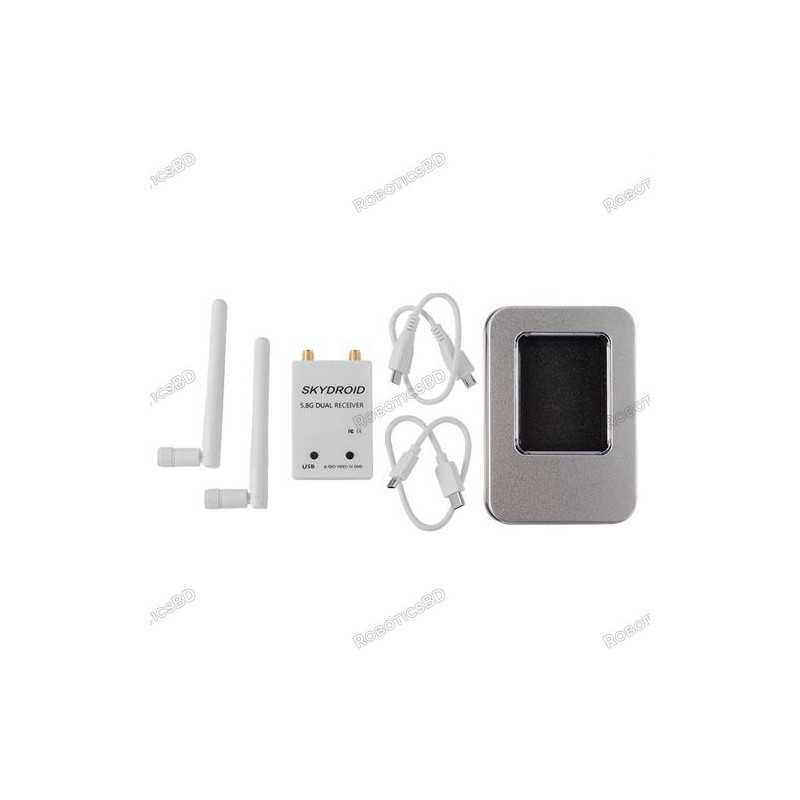

Package Includes:

1 x Eachine ROTG02 FPV Receiver

2 x RP-SMA Antenna

2 x USB Cable
