GPS Antenna 1575.42 MHz
  • GPS Antenna 1575.42 MHz

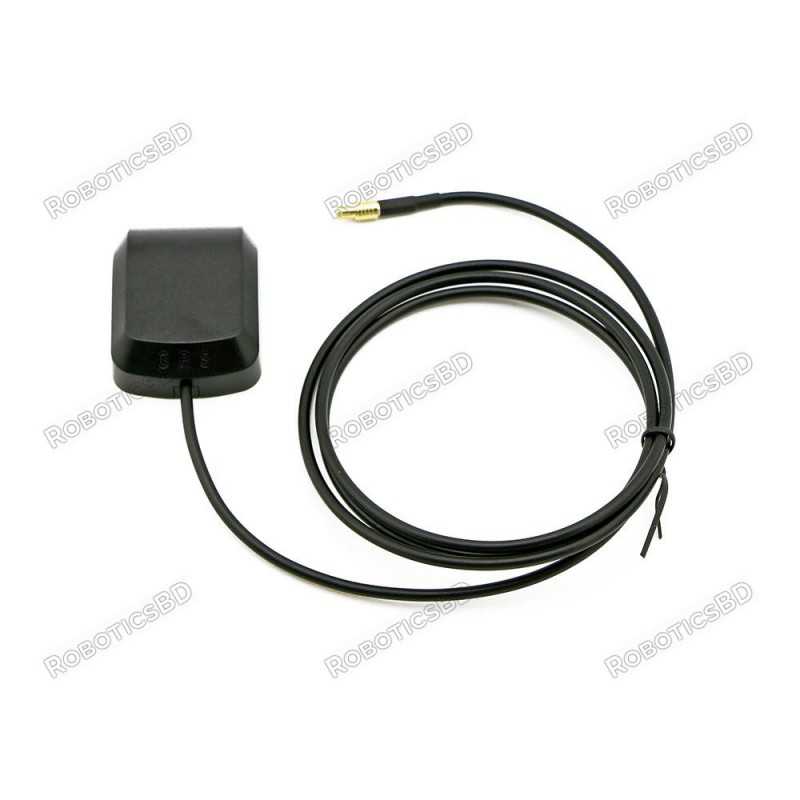

1575.42MHz GPS Antenna

RBD-1023

  • Frequency (MHz) 1575 +/- 5 MHz
  • Gain > 28 dBi (with LNA)
  • Impedance (Ω) 50 Ω
  • VSWR < 1.5
  • Polarization RHCP
  • Power Handling (W) 50 watts
  • Cable Length: 3Meter
  • Connector: SMA-Male
BDT 399.00
BDT 399.00 BDT 399.00 BDT 399.00 BDT 399.00
Tax included Tax excluded Tax included Tax excluded
BDT 399.00 Tax excluded
BDT 399.00 Tax included
BDT 0.00 Tax
BDT 399.00 Tax excluded
BDT 0.00 Tax
BDT 399.00 Tax included
Quantity
In-Stock
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This GPS/GLONASS GNSS Antenna is designed for applications that require high positioning accuracy by combining signals from GPS, and GLONASS, systems. The tiny size of this antenna allows it to be used in very space-restricted environments. With a 3-meter long cable, one can use this antenna to enhance the GPS Signals in an indoor project with GPS and GSM modules as well as Raspberry Pi HAT or Arduino Shield.  The Antenna has a flat magnetic surface to keep it steady at one place temporarily, or it can permanently stick to any surface with help of Double Sided Tape. Featured by RoboticsBD.

A high-gain wide-band patch antenna on an integral ground delivers reliable performance. A fully IP67 waterproof rated and UV resistant enclosure allows use in outdoor environments. Mid-SAW filter configuration eliminates potential. LNA burn-out from nearby out-of-band radiated power bursts from other antennas that may be co-located nearby. The antenna is manufactured under a strict first-tier Automotive-quality controlled manufacturing process. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. The antenna assembly consists of a patch antenna for receiving GNSS signals and a preamplifier for signal amplification.
  2. Power supply to the antenna preamplifier must be provided by the application on the same RF signal trace as the GNSS RF signal is carried to the application.
  3. The antenna has an internal magnet so that it can be fixed on a metallic surface.
  4. Easy to use an antenna. Does not require RF or antenna knowledge.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Frequency 1575 ± 5 Mhz
LNA gain(without cable) > 28 dBi (with LNA)
Typical noise figure 1.5dB
Operating Voltage (VDC) 3 ~ 5
Operating Current 15mA
Max.GSM Working Frequency 824-894/1710-1880 MHz
VAWR 2:1
Impendence 50 Ohms
Peak gain 2dBi at 900mhz,2dBi at 1800mhz
Azimuth Omni-directional polarization, linear polarization
Connector Male SMA
Color Black
Cable Length (Meter) 3
Cable Size (AWG) 18
Weight (gm) 80
Shipment Weight 0.3 kg
Shipment Dimensions 12 × 8 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 1575.42MHz GPS Antenna.
