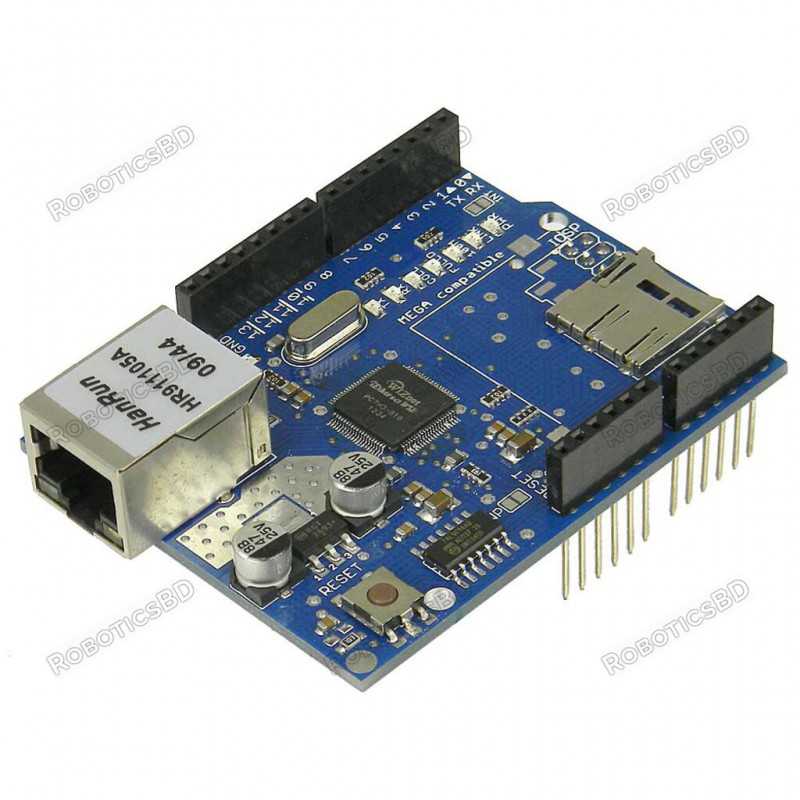

Arduino Ethernet Shield W5100 is a shield or add-on board for the Arduino development platform that provides Ethernet connectivity using the W5100 TCP/IP chip. It allows the Arduino to connect to the Internet and other networks, enabling projects to transmit and receive data and control other devices remotely. The shield also includes a micro-SD card slot for data storage and retrieval.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- Based on the W5100Based on the Wiznet W5100 allows an Arduino board to connect to the internet.
- Stackable Design, can directly be supported by for Arduino official Ethernet Library.
- Supports up to four simultaneous socket connections
- Can be used to store files for serving over the network.
- Compatible with the for Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560).
- Can be accessed using the Mini SD TF library.
- The current shield has a Power over Ethernet (PoE) module designed to extract power from a conventional twisted pair Category 5 Ethernet cable.
- IEEE802.3af compliant
- Low output ripple and noise (100mVpp)
- Overload and short-circuit protection
- 1500V isolation (input to output)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Application:
- Web Server: Create a web server to control and monitor devices remotely.
- Internet of Things (IoT): Connect Arduino devices to the internet to send and receive data.
- Remote Data Logging: Log data from sensors and store it on a remote server.
- Networked devices control: Control and monitor devices on a network using the Ethernet Shield.
- M2M Communication: Enable machine-to-machine communication for automation and control applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| IC Chip |
Wiznet W5100 |
| Connection speed |
10/100Mb |
| Operating Voltage (VDC) |
5 |
| Length (mm) |
75 |
| Width (mm) |
54 |
| Height (mm) |
25 |
| Weight (gm) |
78 |
| Shipment Weight |
0.078 kg |
| Shipment Dimensions |
12 × 8 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Power Supply Voltage: Ensure that the voltage supplied to the shield is within the specified range.
- Electrostatic Discharge (ESD) protection: Protect the device from static electricity damage.
- Operating Temperature: Ensure that the shield is used within the specified operating temperature range.
- Circuit protection: Implement proper circuit protection to prevent damage to the device.
- Network Security: Ensure network security by using appropriate encryption and authentication methods.
Package Includes :
1 x Ethernet W5100 Shield Network Expansion Board
