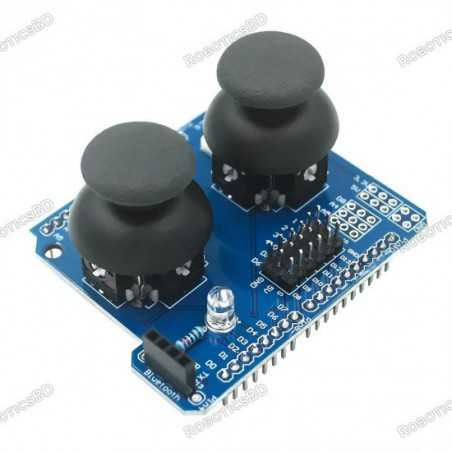

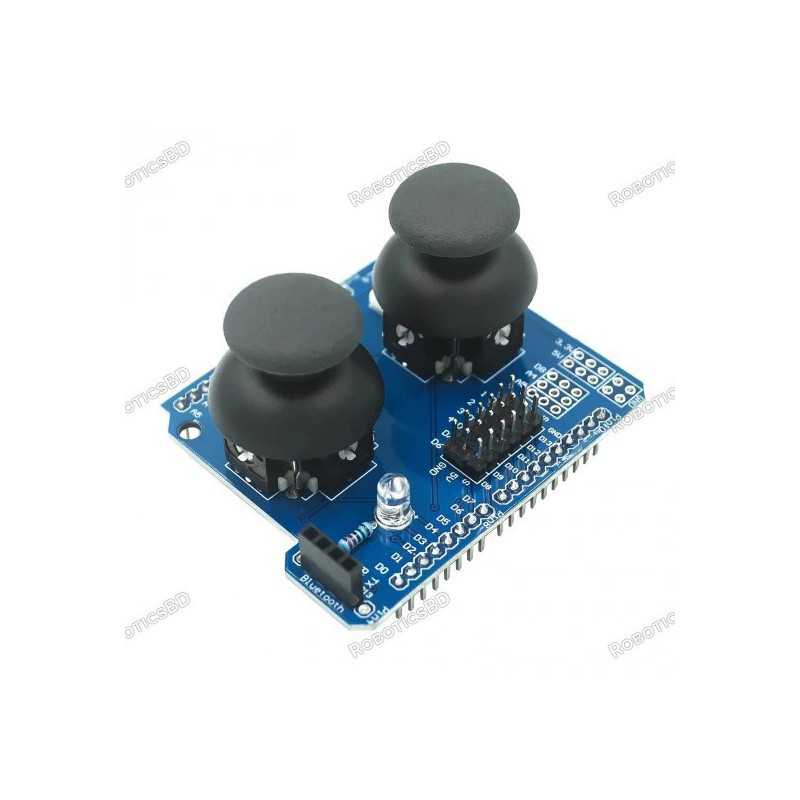

Dual PS2 Game Joystick Button Module Joystick Compatible With Arduino

Dual PS2 Game Joystick Button Module Joystick Compatible With Arduino is a module use to connect and interface PlayStation 2 (PS2) game joysticks with an Arduino microcontroller board. It provides a simple and convenient way to control various projects and applications using PS2-style joysticks.

The module consists of two PS2 joysticks, each with two-axis analog sensors for detecting movement in the X and Y directions. These sensors translate the physical movement of the joystick into analog voltage signals that can be read by the Arduino. Additionally, each joystick has a built-in push-button switch, which can be used as an additional input.

To use the Dual PS2 Game Joystick Button Module with an Arduino, you would typically connect the VCC pin to a 5V power source on the Arduino, the GND pin to the ground, and the VRX and VRY pins to the analog input pins of the Arduino. The SW pin can be connected to a digital input pin on the Arduino to read the state of the push-button switch.

Dual PS2 Game Joystick Button Module provides a convenient way to interface Joysticks with Arduino and opens up possibilities for creating interactive projects and applications that involve joystick control.

Features:

• Dual-axis game joystick button module.
• Low power supply.
• Wide voltage output.
• Support boost and voltage lower.
• Long handle potentiometer adjustment.

Specifications:

• Working voltage :5V DC
• Axis : X & Y
• Type: Button Joystick
• Size:  65.1x53.8 mm
• Weight: 37g

Pin Out :

• VCC - 5V supply
• GND - Ground
• VRX  - Analog voltage outputs for the X axes
• VRY - analog voltage outputs for the Y axes
• SW - switch output for the push-button

Applications:

• Gaming-related projects
• Robot control systems
• Remote control applications
• Project that requires precise analog control input.

Package Includes:

• 1 x Dual-axis game joystick button module.
