20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer Robotics Bangladesh
  • 20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer Robotics Bangladesh
  • 20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer Robotics Bangladesh

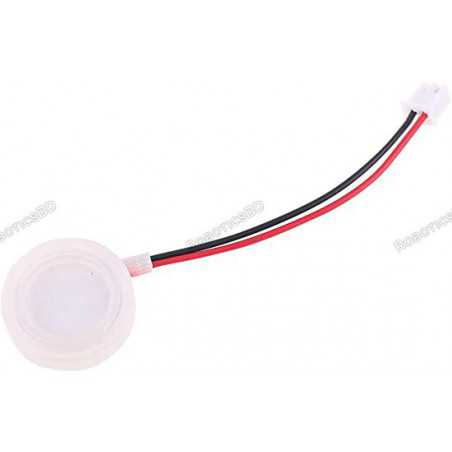

20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer

RBD-2249

  • Made From High-Quality Materials.
  • Electronic High-Frequency Oscillations (2.4MHz).
  • Material: Ceramic, Wire
  • Diameter: Atomizer: 2cm/0.79in; Sealing ring: 2.5cm/0.98in
BDT 199.00
BDT 199.00 BDT 199.00 BDT 199.00 BDT 199.00
Tax included Tax excluded Tax included Tax excluded
BDT 199.00 Tax excluded
BDT 199.00 Tax included
BDT 0.00 Tax
BDT 199.00 Tax excluded
BDT 0.00 Tax
BDT 199.00 Tax included
Quantity
In-Stock
184 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Piezoelectric Humidifier is made of high-quality material, durable, anti-corrosion, anti-aging, and high hardness, great effect, and serve you for a long time.

With electronic high-frequency oscillation ( 2.4MHz), the liquid water molecules are processed into flowing mist and release a large number of negative ions, which react with smoke, dust, and the like floating in the air to cause precipitation.

It also can effectively remove harmful substances such as formaldehyde, carbon monoxide, and bacteria, so that the air can be purified and the disease can be reduced, keep your and your family’s health.

Low impedance, waveform is stable, high electromechanical conversion efficiency and low dielectric loss, this atomizer saves more energy than heated atomization.

Suitable for industry, warehousing, family, hotel, and so on. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Ultrasonic mist maker transducer for generating fine water droplets.
  2. Operating frequency of 2.4MHz.
  3. Generates mist using ultrasonic vibrations.
  4. Low power consumption.
  5. Compact size for easy integration into systems.
  6. Can be used with a variety of power sources, such as batteries or DC power supplies.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Humidifiers and air purifiers.
  2. Indoor and outdoor fountains.
  3. Horticulture and hydroponics systems.
  4. Food and beverage processing.
  5. Industrial cooling and humidification.
  6. Medical and laboratory equipment.
  7. Special effects for film and theater.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Nominal Frequency 2.4MHz
Adjustable Frequency Difference 0.01MHz
Temperature Frequency Difference 0.01MHz
Total Frequency Difference 0.02MHz
Load Capacitance 2200pF
Load Resonance Resistor 350Ω
Excitation Level 250mW
Reference Temperature 26℃
Insertion Loss 3dB
Diameter Atomizer: 2cm/0.79in; Sealing ring: 2.5cm/0.98in
Shipment Weight 0.005 kg
Shipment Dimensions 5 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 20mm 2.4Mhz Ultrasonic Mist Maker Fogger Atomizing Transducer

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2249
184 Items

Specific References

EAN13
2249
Comments (0)
Grade
No customer reviews for the moment.
