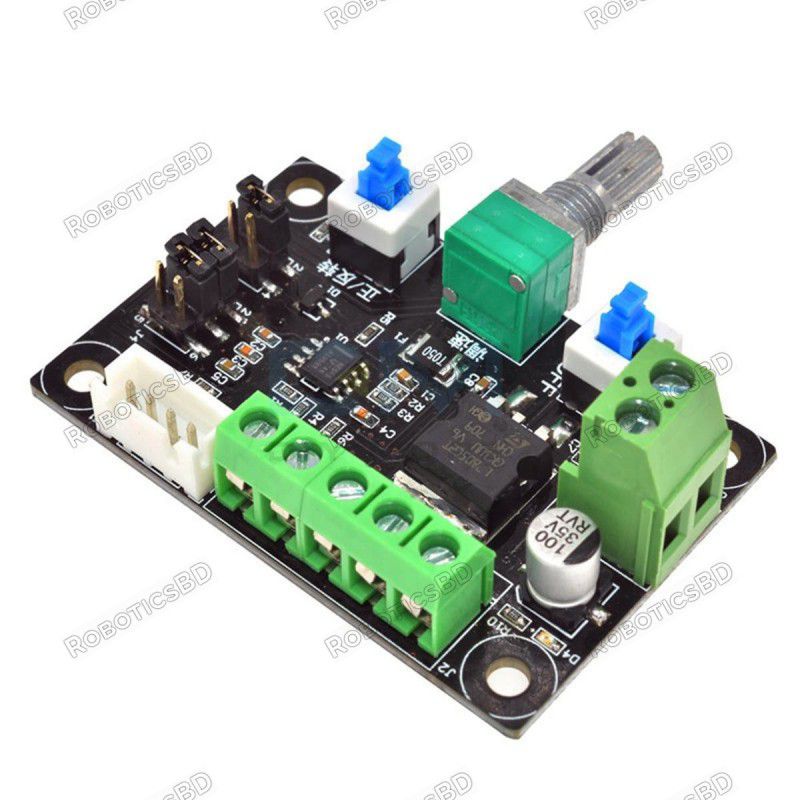

PWM Signal Generator Stepper Motor Speed Controller Driver Board Robotics Bangladesh
  • PWM Signal Generator Stepper Motor Speed Controller Driver Board Robotics Bangladesh

PWM Signal Generator Stepper Motor Speed Controller Driver Board

RBD-2676

  • Suitable for use with a wide range of stepper motors and drivers.
  • Can be integrated into a simple control platform with a stepper motor and DC power supply.
  • Offers three selectable low-frequency signal options: high (5.4k-160kHz), middle (540-16.6kHz), and low (80-2.4kHz), adjustable via jumper settings.
  • Capable of producing both pulse and PWM signals, with jumper selection for signal type.
  • Easy frequency measurement via PUL and common cathode end connections.

Installation: Different stepper drivers may use different names for connection terminals:

  • EN=ENA=FREQ: Enable
  • PUL=PULS=CLK: Pulse
  • DIR=CW=CWW: Direction
BDT 550.00
BDT 550.00 BDT 550.00 BDT 550.00 BDT 550.00
Tax included Tax excluded Tax included Tax excluded
BDT 550.00 Tax excluded
BDT 550.00 Tax included
BDT 0.00 Tax
BDT 550.00 Tax excluded
BDT 0.00 Tax
BDT 550.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This versatile module serves as a pulse generation unit, supplying essential control signals to stepper motor drivers. It is a key component for managing stepper motors, requiring a compatible driver for operation.

Key Features:

  • Suitable for use with a wide range of stepper motors and drivers.
  • Can be integrated into a simple control platform with a stepper motor and DC power supply.
  • Offers three selectable low-frequency signal options: high (5.4k-160kHz), middle (540-16.6kHz), and low (80-2.4kHz), adjustable via jumper settings.
  • Capable of producing both pulse and PWM signals, with jumper selection for signal type.
  • Easy frequency measurement via PUL and common cathode end connections.

Installation: Different stepper drivers may use different names for connection terminals:

  • EN=ENA=FREQ: Enable
  • PUL=PULS=CLK: Pulse
  • DIR=CW=CWW: Direction

Connection Methods: Common Anode (B):

  • Connect EN+, PUL+, and DIR+ together to com+
  • Connect EN- to EN
  • Connect PUL- to CLK
  • Connect DIR- to DIR

Common Cathode (B):

  • Connect EN-, PUL-, and DIR- together to com-
  • Connect EN+ to EN
  • Connect PUL+ to CLK
  • Connect DIR+ to DIR

Package Includes: 1x Control Signal Generator Module

Enhance your stepper motor control capabilities with this reliable and versatile Pulse and PWM Signal Generator Module. Ideal for a variety of applications requiring precise motor control and modulation.
