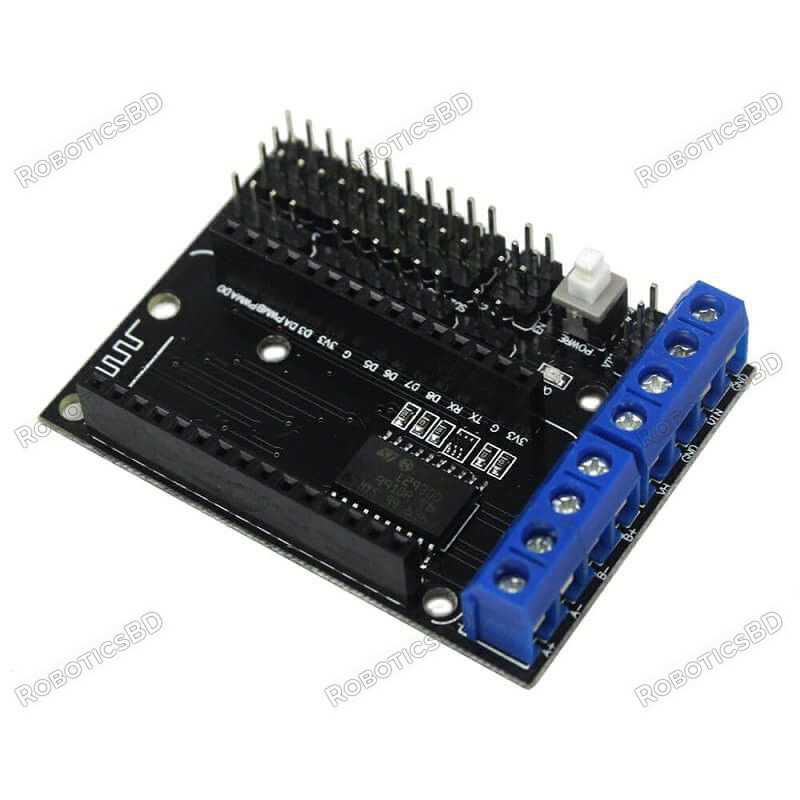

L293D Motor Driver module is compatible with ESP12E Dev Kit and NodeMCU. This shield board is driven by the power full-bridge chip L293DD which can directly drive 2-channels DC motors or one-channel stepper motor.
In this motor shield board, the IO port of ESP-12E Dev Kit is used as the control port. The logic chip configured inside can finish IC driven. Thus, the shield board has four ports: D1, D2, D3, and D3, which are used as PWMA(motor A), PWMB (motor B), DA (direction of motor A), and DB (direction of motor B), respectively. In addition, this shield board has many pins, such as VIN, 3.3V, DIO, AIO, SDIO, UART, SPI, RST, and EN, thus can conveniently connect all kinds of sensors (e.g., temperature and humidity, buzzer, light, relay sensor, etc.)
NodeMCU is an open-source development board, based on famous ESP8266 chip (ESP12E or ESP12F), which is a 32-bit controller with integrated WiFi transceiver. And it is very low cost. Best of all, this board is Arduino IDE compatible, you can utilize the millions of example codes and libraries on NodeMCU. Besides Arduino IDE or Arduino programming langauge, NodeMCU supports many other languages like LUA script, microPython etc. With these scripting languages, you can develop your prototype within a few script lines.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
This shield is designed for the NodeMCU V2 (narrow width), it comes with L293D motor driver and breakout the GPIO to headers for easy access when connecting to various sensor modules. With the L293D, this shield supports the control of two (2) brush motor, start, stop, brake, direction and also speed. The shield also extends the GPIO of NodeMCU to header pins in SVG sequence (RC servo alike), not to forget the UART , SPI, Power and GND pins. There are options to power the board separately or with single power source. The board also comes with a power LED indicator and latching push button as power switch.
This shield is very convenient and cheap to build or DIY a WiFi RC smart car or any type of robotics or even UAV platform.
Note: Compatible with narrow width NodeMCU, get it from here. NOT compatible with NodeMCU V3 (wider width)
Features:
- ESP12 DEV KIT development board expansion module
- Lead ESP12 DEV KIT all the features of pins: SPI, UART, GPIO, AI, and 3.3V power connector
- Extend two-way motor-driven, two-way direct-drive motor
- onboard power switch
- Motor power, control power separation
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Motor power supply Range |
4.5V ~ 36V |
| Control power Range |
4.5V ~ 9V (10VMAX) |
| Logic Operating current |
≤60mA |
| Drive part of the work current Io |
≤1.2A |
| Maximum power dissipation |
4W |
| Drive Type |
Dual high-power H-bridge driver |
| Working temperature |
-25 ℃ ~ + 125 ℃ |
| Dimension(mm) |
60 x 45 x 13 |
| Weight(g) |
20 |
| Shipment Weight |
0.022 kg |
| Shipment Dimensions |
12 × 8 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Simplest Wifi Car Using ESP8266 Motorshield
- Node MCU Motor Shield
Package Includes:
1 x L293D Shield for NodeMCU V2
