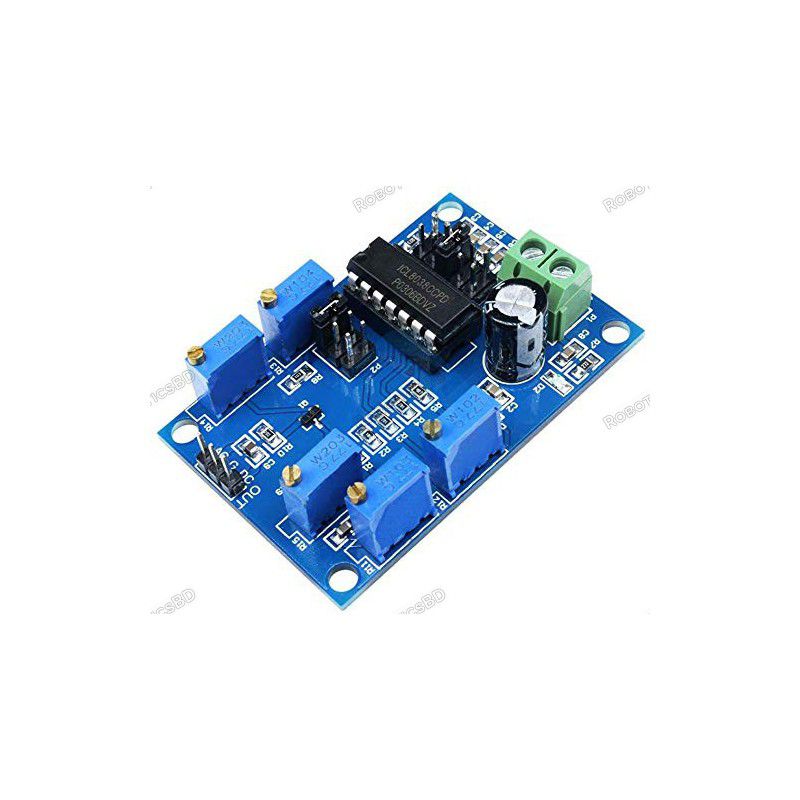

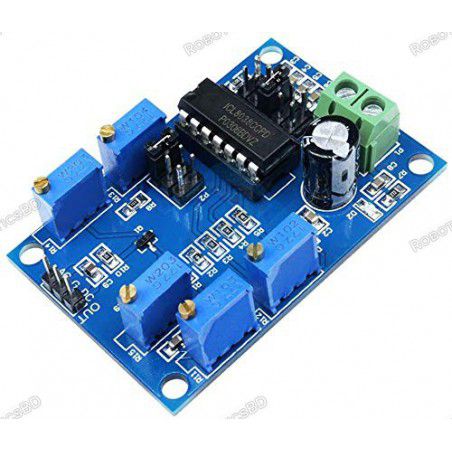

ICL8038 12V to 15V 10Hz-450KHz Triangular/Rectangular/Sine Wave Signal Generator Module

RBD-2761

ICL8038 12V to 15V, Signal Generator, Medium/Low Signal, Frequency 10Hz-450KHz, Triangular/Rectangular/Sine Wave Generator, Module

  1. Working voltage: 12V ~ 15V
  2. Output: Triangular wave, Square wave and sine wave.
  3. Frequency range: 10HZ ~ 450kHz
  4. Low distortion sine wave: 1%
  5. Duty cycle range: 2% to 98%
  6. Low temperature drift: 50ppm / ℃
  7. Triangular wave output linearity: 0.1%
  8. Working temperature: 0 ~ 70 ℃
  9. Board size: 54.5*37.8mm
BDT 580.00
BDT 580.00 BDT 580.00 BDT 580.00 BDT 580.00
Tax included Tax excluded Tax included Tax excluded
BDT 580.00 Tax excluded
BDT 580.00 Tax included
BDT 0.00 Tax
BDT 580.00 Tax excluded
BDT 0.00 Tax
BDT 580.00 Tax included
Quantity
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The LC ICL8038 module is designed for common frequency ranges. It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 10Hz to 450KHz. A sine wave can be used for test signals, drive signals, carrier frequency signals, etc; a square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.

Function:

  1. VCC, GND: working voltage
  2. AC: with DC bias output
  3. G: ground
  4. DC: pure signal output
  5. R11: Frequency adjustment
  6. R12: Square wave duty cycle adjustment
  7. R13: Sine wave linear adjustment
  8. R14: Amplitude adjustment
  9. R15: Square wave linear adjustment
  10. Jumper P2: select different wave-forms(triangular, square or sine waves)
  11. Jumper P3: select different frequency ranges
    10Hz-450Hz,90Hz-1.5KHz,940Hz-15KHz,6KHz-120KHz,20KHz-450KHz

Features:

  1. The LC ICL8038 module is designed for common frequency ranges.
  2.  It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 0Hz to 450KHz.
  3. Sine waves can be used for test signals, drive signals, carrier frequency signals, etc.
  4. A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
  5.  Portable design, easy to operate.

Package Includes :

1 x ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module
