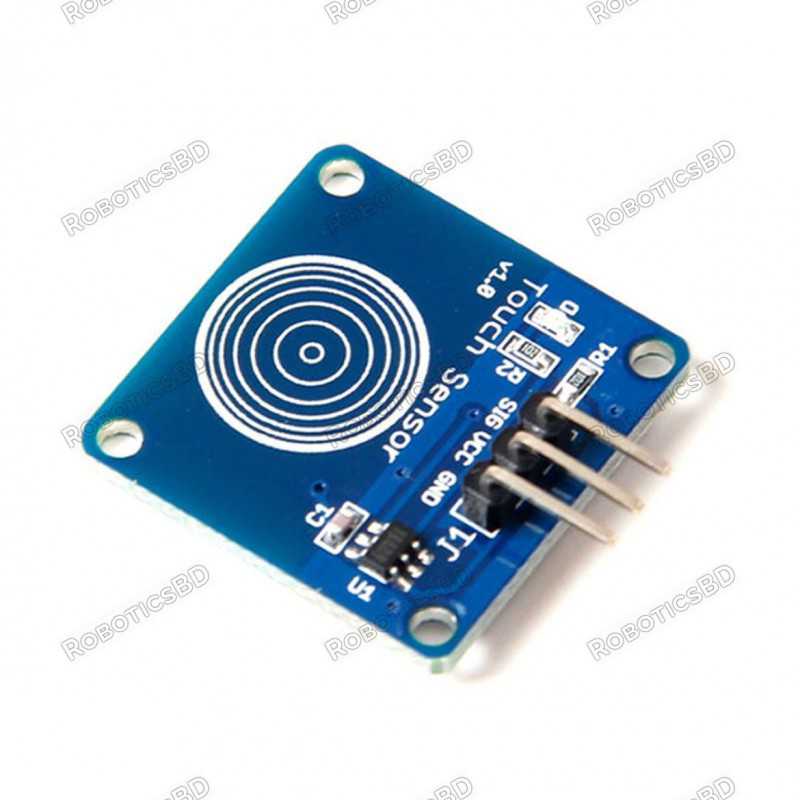

TTP223B Digital Touch Sensor Capacitive Touch
  • TTP223B Digital Touch Sensor Capacitive Touch

TTP223B Digital Touch Sensor Capacitive Touch

RBD-0663

  • Power supply voltage(VCC): 2.0, 3, 5.5 V.
  • Output high VOH: 0.8VCC V
  • Output low VOL: 0.3VCC V
  • Response time (touch mode) : 60 mS
  • Response time (low power mode) : 220 mS
  • Can replace the traditional touch of a button
  • Four M2 screws positioning holes for easy installation RoboticsBD
BDT 80.00
BDT 80.00 BDT 80.00 BDT 80.00 BDT 80.00
Tax included Tax excluded Tax included Tax excluded
BDT 80.00 Tax excluded
BDT 80.00 Tax included
BDT 0.00 Tax
BDT 80.00 Tax excluded
BDT 0.00 Tax
BDT 80.00 Tax included
Quantity
In-Stock
471 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Digital Sensor TTP223B Module Capacitive Touch Switch is based on a touch-sensing IC (TTP223B) capacitive touch switch module. Allows you to remove the worry of conventional push-type keys.

Digital Capacitive Touch Switch Module is based on TTP223B. Normally, it outputs low and keeps at low power state. When a touch is sensed on the circular marked region, it outputs high and switches to the quick response state. When not being touched for 12 seconds, it switches to low power state again. RoboticsBD

If the module is mounted in the surfaces of non-metallic materials such as plastic, glass, acrylic, you can make the keys hidden in the walls and desks.

In addition to the thin paper ( non-metallic ) covering the surface of the module, as long as the correct location of the touch, you can make hidden in the walls, desktops and other parts of buttons. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Touch Sensor Interface :
  1. Control Interface: A total of three pins (GND, VCC, SIG), GND to the ground, VCC is the power supply, SIG digital signal output pin
  2. Power Indicator: Green LED, power on the right that is shiny. RoboticsBD
  3. Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger.
  4. Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination.

Features :

  1. Low power consumption
  2. Power supply for 2 ~ 5.5V DC
  3. Can replace the traditional touch of a button
  4. Four M2 screws positioning holes for easy installation
  5. Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
  6. Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 2 ~ 5.5
Output high VOH 0.8VCC V
Output low VOL 0.3VCC V
Response time (touch mode) 60 mS
Response time (low power mode) 220 mS
Length (mm) 24
Width (mm) 24
Height (mm) 2
Weight (gm) 0.6
Shipment Weight 0.085 kg
Shipment Dimensions 3 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x TTP223B Digital Touch Sensor Capacitive Touch.
