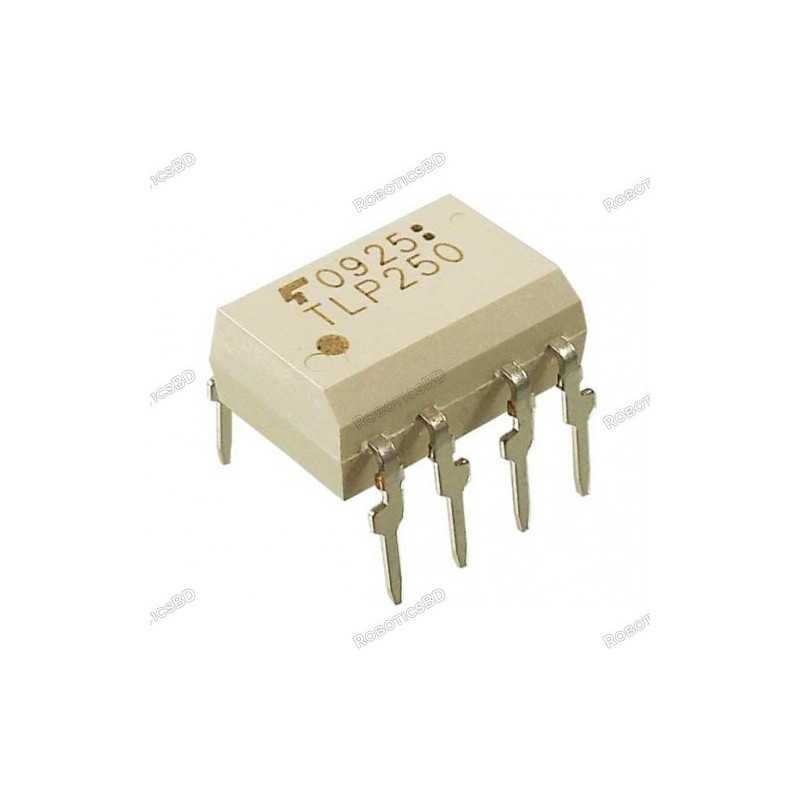

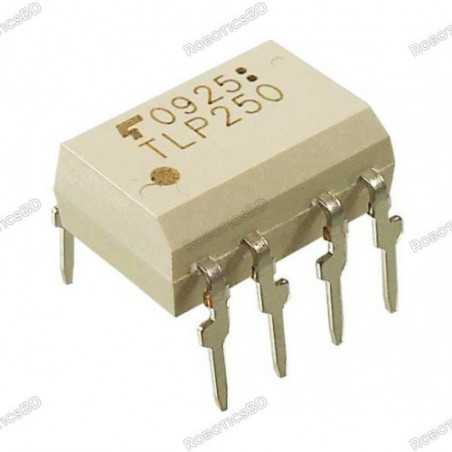

The TOSHIBA TLP250 consists of an infrared emitting diode and a integrated photodetector.
This unit is 8-lead DIP package. RoboticsBD
TLP250 is suitable for gate driving circuit of IGBT or power MOSFET. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Input threshold current: 5mA(max)
- Supply current : 11mA(max)
- Supply voltage : 10-35V
- Output current : ±1.5A (max)
- Switching time tpLH/tpHL): 0.5μs(max)
- Isolation voltage: 2500Vrms(min)
- UL-recognized: UL 1577, File No.E67349
- cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
- VDE-Approved: EN 60747-5- 5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option(D4).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case |
PDIP-8 |
| Minimum Supply Voltage (V) |
24 |
| Maximum Supply Voltage (V) |
35 |
| Product Type |
Power MOS FET Gate Drive |
| Operating Temperature Range (°C) |
–55° C to +125° C |
| Mounting Type |
Through Hole |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x TLP250 Optocoupler.
