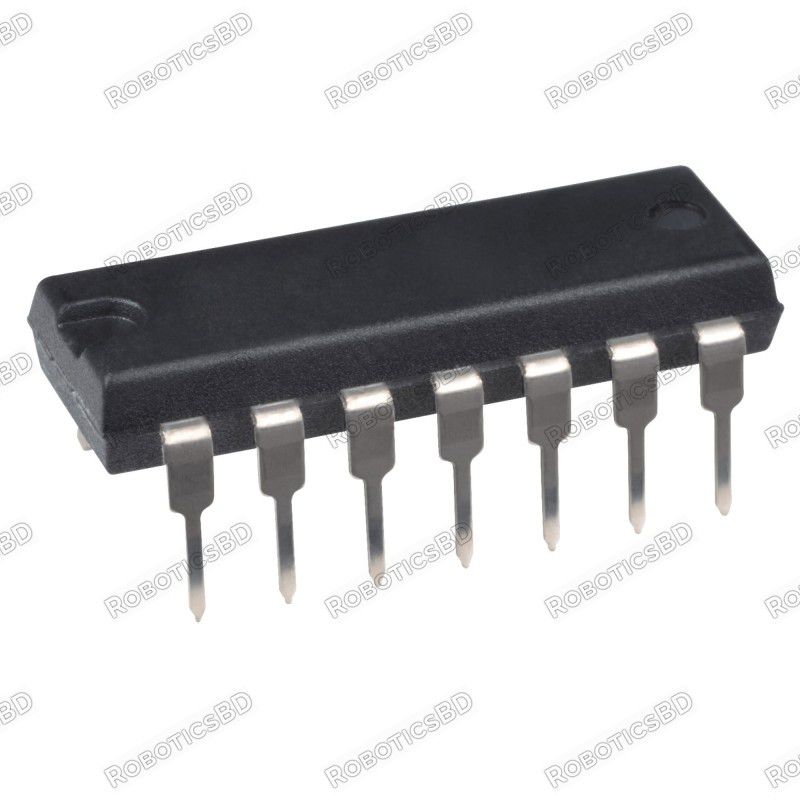

LM324N Quad Op-Amp Robotics Bangladesh
  • LM324N Quad Op-Amp Robotics Bangladesh
  • LM324N Quad Op-Amp

LM324N Quad Op-Amp

RBD-1011

  • Wide supply voltage ranges
  • Low supply-current drain independent of supply voltage
  • Common-mode input voltage range includes ground, allowing direct sensing near ground
  • Low input bias and offset parameters
  • Internal frequency compensation
  • Common mode input voltage range includes ground, allowing direct sensing near ground
  • Input offset voltage is typical 3mV
  • Input offset current is typical 2nA
  • A differential input voltage range of 32V equal to the maximum rated supply voltage
BDT 25.00
BDT 25.00 BDT 25.00 BDT 25.00 BDT 25.00
Tax included Tax excluded Tax included Tax excluded
BDT 25.00 Tax excluded
BDT 25.00 Tax included
BDT 0.00 Tax
BDT 25.00 Tax excluded
BDT 0.00 Tax
BDT 25.00 Tax included
Quantity
In-Stock
178 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

LM324N is a quad operational amplifier (Op-Amp) integrated circuit. It contains four independent, high-gain, frequency-compensated operational amplifiers. The LM324N is capable of operating over a wide range of voltages, making it suitable for use in a variety of applications. It is used in many circuits such as comparators, buffer amplifiers, voltage regulators, and converters. The LM324N is designed for use in low-power applications, where it provides low input bias current, low offset voltage, and high input impedance. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Supply voltages larger than 32V for single supply and outside the range of ±16V for dual supply can permanently damage the IC

Warnings: This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Wide supply voltage ranges
  2. Low supply-current drain independent of supply voltage
  3. Common-mode input voltage range includes ground, allowing direct sensing near ground
  4. Low input bias and offset parameters
  5. Internal frequency compensation
  6. Common mode input voltage range includes ground, allowing direct sensing near ground
  7. Input offset voltage is typical 3mV
  8. Input offset current is typical 2nA
  9. A differential input voltage range of 32V equal to the maximum rated supply voltage
  10. Operating temperature range from 0°C to 70°C
  11. Applications: Signal Processing, Consumer Electronics, Portable Devices, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-14
Amplifier Type General Purpose Amplifier
Minimum Supply Voltage (V) 3
Maximum Supply Voltage (V) 32
Number of Channel 4
Output Current Per Channel 40 mA
Input Bias Current (Ib) 45 nA
Gain Bandwidth Product (GBP) 1.2 MHz
Input Offset Voltage (Vos) 7 mV
Slew Rate (SR) 0.5 V/us
CMRR (dB) 65 ~ 80
Voltage Gain (dB) 100
Technology Bipolar
Max Dual Supply Voltage ±16 V
Min Dual Supply Voltage (V) ± 1.5
Max. Operating Current (mA) 1.5
Operating Temperature Range (°C) 0 to 70
Dimensions (mm) LxWxH 19.3 x 6.35 x 4.47
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x LM324N Quad Op-Amp
