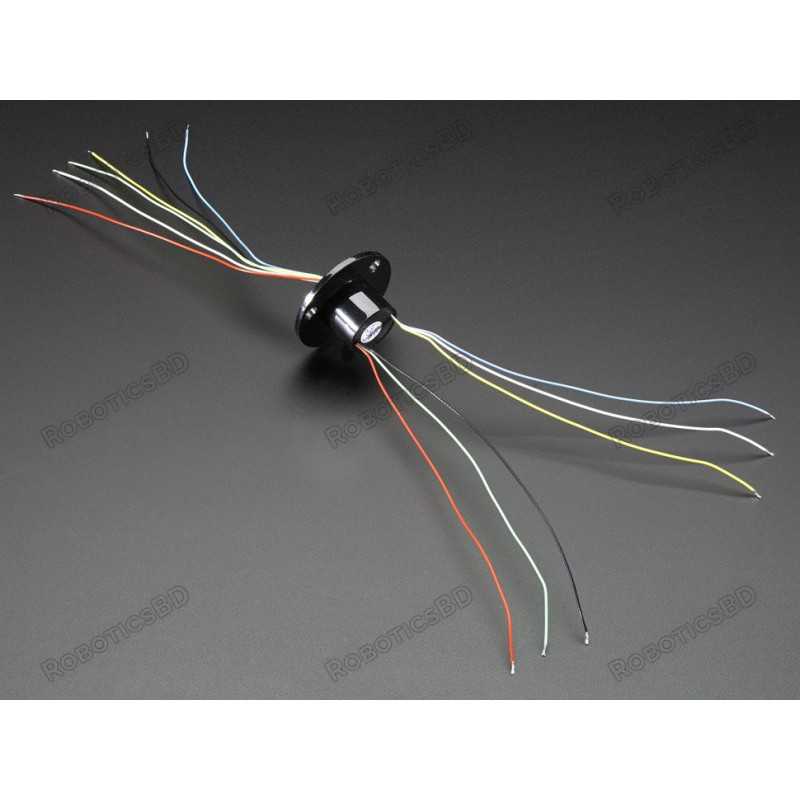

Slip Ring - 6 Wire (1.5A) max 240V

Reference RBD-0394

They are very useful for connecting components to wires.
It is insulation covered clips connected to the wire from both ends. RoboticsBD

BDT 1,500.00

BDT 1,500.00 BDT 1,500.00 BDT 1,500.00 BDT 1,500.00

Tax included Tax excluded Tax included Tax excluded

BDT 1,500.00 Tax excluded

BDT 1,500.00 Tax included

BDT 0.00 Tax

BDT 1,500.00 Tax excluded

BDT 0.00 Tax

BDT 1,500.00 Tax included

Quantity

Last items in stock

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

SRM-12-06A is a standard hat-type slip ring with an outer diameter of 12.5mm,a length of 15mm, and a 6-way* 1.5A (signal) The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive slip ring. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

Used advanced technology to design, lower consumption. RoboticsBD
Compact design allows tremendous flexibility
Colour-coded insulated leads allow you to test circuits without crossing wires or causing shorts with each other.
Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation
Precision module provides long time maintenance –free operation(no cleaning or lubrication required)

Features :

6 wires
Voltage: 210VDC / 240VAC
Current Rating: 1.5A
Operating Speed: 250RPM
Compatible with data bus protocols
Transfers analog and digital signals. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Voltage:	210VDC / 240VAC
Current Rating:	1.5A
Voltage:	250RPM
Compatibility	Compatible with data bus protocols
Compatibility	Transfers analog and digital signals
Shipment Weight	0.015 kg
Shipment Dimensions	1.2 × 1.2 × 1.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Slip Ring - 6 Wire (1.5A) max 240V.
