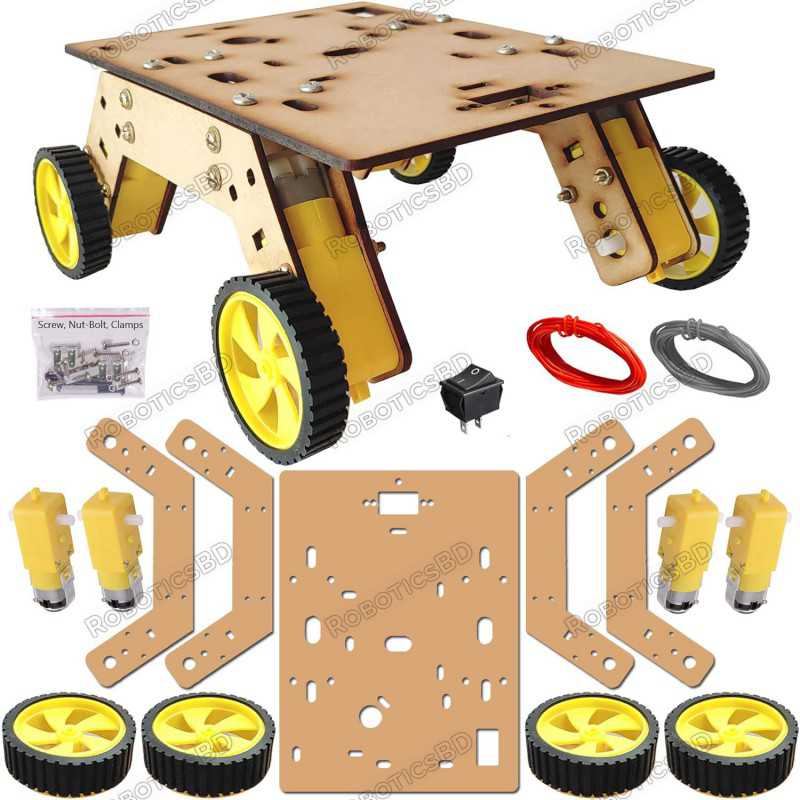

4WD Robotics Rover DIY Wooden Chassis With Motors & Wheels

RBD-0880

  • Wooden robot chassis with 4 motors, 4 wheels, wire, switch, nut bolts, and clamps
  • Multipurpose 4-wheel drive robotic car chassis kit
  • Can be used to make a variety of robotic projects
  • Easy to assemble with easy steps
BDT 1,100.00
BDT 1,100.00 BDT 1,100.00 BDT 1,100.00 BDT 1,100.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,100.00 Tax excluded
BDT 1,100.00 Tax included
BDT 0.00 Tax
BDT 1,100.00 Tax excluded
BDT 0.00 Tax
BDT 1,100.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 4WD Robotics Rover DIY Wooden Chassis with 4 Motor, 4 Wheel, Wire, Switch, Nut Bolts, and Clamps is the perfect platform for building your own robotic car. It is made of high-quality wood and comes with all the necessary components, including 4 BO double shaft geared motors, 4 plastic wheels, wire, switch, nut-bolts, and clamps. The chassis is also versatile and can be used to make a variety of robotic projects, such as line following robots, obstacle avoidance robots, and remote-controlled robots. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Made of 3mm Gorjon Plywood.
  2. Comes with all the necessary components, including 4 BO double shaft geared motors, 4 plastic wheels, wire, switch, nut-bolts, and clamps
  3. Multipurpose and can be used to make a variety of robotic projects
  4. Easy to assemble with easy steps
  5. Enough ground clearance and space to put a lot of electronics and circuitry

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Building robotic cars
  2. Learning about robotics and electronics
  3. Experimenting with new technologies
  4. Developing educational learning kits

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Material 3mm Gorjon Plywood
Motor Type BO double shaft geared motor
Wheel Size 5cm
Upper Plate Chassis Size 18x13.5cm
BO Motor Operating Voltage 3-9v DC
BO Motor Speed 150 RPM
Included Components Nut-bolts, 2 wires, switches
Application Robotic projects, DIY, science, college, engineering
Shipment Weight 0.305 kg
Shipment Dimensions 15 x 15 x 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

For BO Motor:
  1. Operating Voltage: 3V~6V DC
  2. Gear Ratio 1:48
  3. No-load speed(5V): about 208RPM
  4. Rated Torque: 0.8 Kg.cm @ 5V
  5. Load current: 170mA (when it is 4.5V)
  6. Size: 70 x 23  x 18 mm
  7. Weight:28g
  8. Shaft Length: 10 mm
  9. Shaft Type: 6 mm, Double-D

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Specifications

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

For Wheel:
  1. Loading Capacity: Max 2.5Kg
  2. Double D-hole For BO Motor: 6 mm
  3. Weight: 34g
  4. Wheel Diameter: 65 mm
  5. Color: Black (Tyre), Yellow (Rim)
  6. Wheel width: 27 mm
  7. Body Material: Plastic
  8. Grip Material: Rubber. RoboticsBD

Package Includes:

1 x 4WD Robotics Rover DIY Wooden Chassis With Motors & Wheels

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0880

Specific References

EAN13
0880
