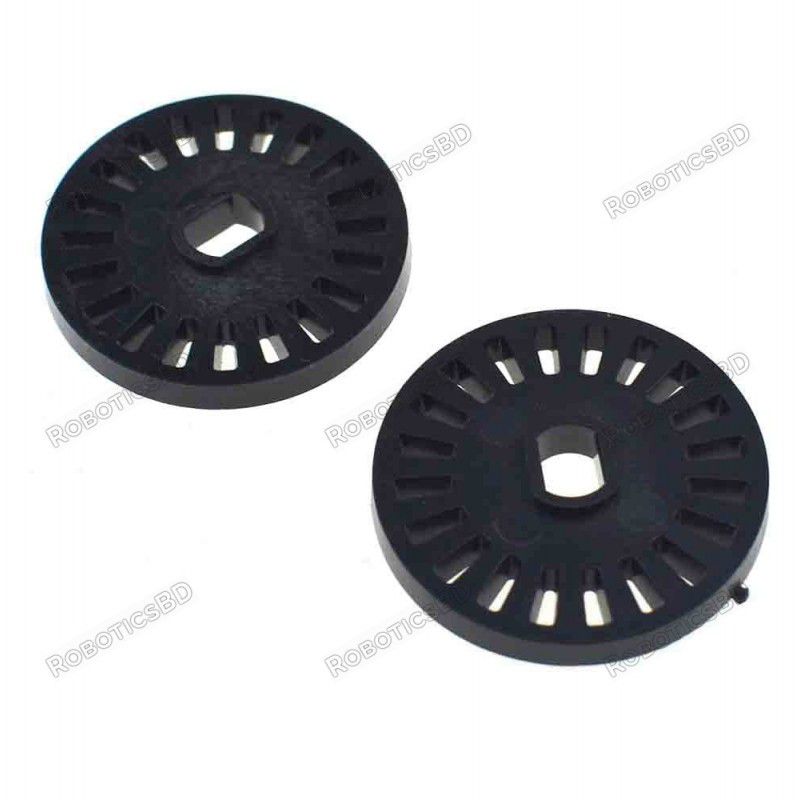

Slit Disc for Rotary Encoder

RBD-0128

  • Measure rotational speed with this 20-grid code disc for use with encoders and optocouplers.
  • Compatible with various TT motors for DIY robotics projects and experiments.
  • Lightweight and compact design for easy integration.
BDT 35.00
BDT 35.00 BDT 35.00 BDT 35.00 BDT 35.00
Tax included Tax excluded Tax included Tax excluded
BDT 35.00 Tax excluded
BDT 35.00 Tax included
BDT 0.00 Tax
BDT 35.00 Tax excluded
BDT 0.00 Tax
BDT 35.00 Tax included
Quantity
In-Stock
48 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Speed Measurement Code Disc (20 Grid) is a fundamental component for measuring rotational speed in various DIY robotics projects and experiments. This disc features a high-precision design with 20 evenly spaced grids or slots. When paired with an encoder or optocoupler, the rotating disc generates electronic pulses that can be counted to determine speed.

Compatibility and Applications:

This code disc is specifically designed to work seamlessly with TT motors, a common choice for hobbyist robotics projects. Its compact size and lightweight construction make it ideal for integration into space-constrained applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 20 Grid Design: Enables accurate speed measurement through pulse generation.
  2. Encoder/Optocoupler Compatibility: Works with various sensing mechanisms for speed detection.
  3. TT Motor Compatibility: Designed for use with popular hobbyist robotics motors.
  4. Lightweight and Compact: Easy to integrate into your projects.
  5. High-Quality Plastic Construction: Ensures durability for long-lasting use.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. DIY Robotics Projects: Implement speed measurement functionalities in robots, line followers, and other motorized creations.
  2. Educational and Experimental Use: Demonstrate the principles of speed measurement and encoder operation in a practical setting.
  3. Speed Control Systems: Provide feedback for motor speed control systems in your projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Number of Grids 20
Diameter 25mm
Coupling Suits TT Motors
Material High-Quality Plastic
Color Black
Shipment Weight 0.005 kg
Shipment Dimensions 3 x 3 x 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. This product is a passive component. Additional elements like encoders or optocouplers are required for speed measurement.
  2. Choose the appropriate encoder or optocoupler based on your project's specific requirements.
  3. Consider using a mounting hub or adapter for secure attachment to your motor shaft (if not directly compatible).

Package Includes:

1 x RoboticsBD
