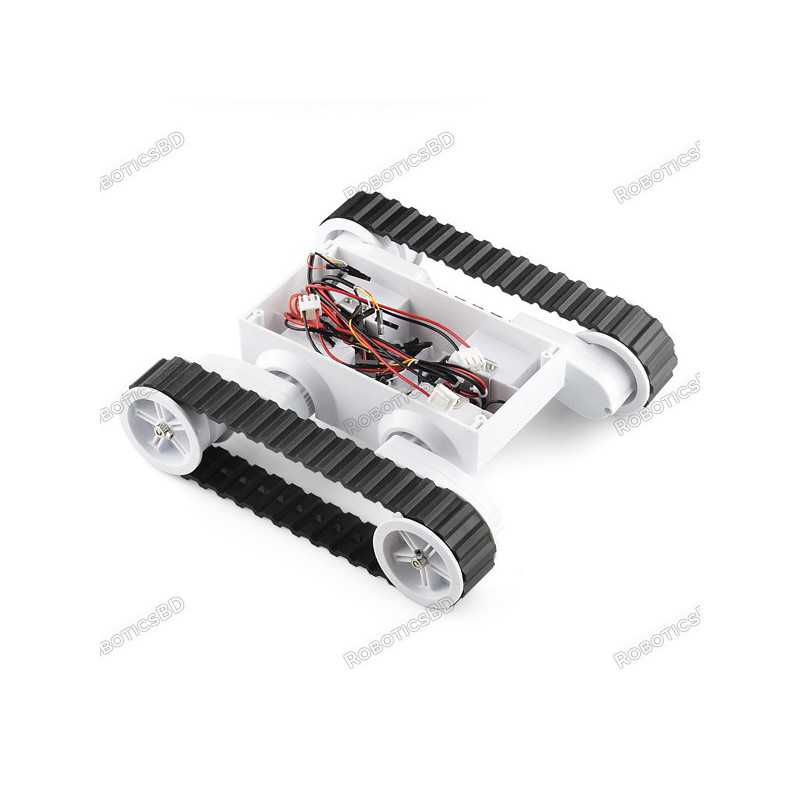

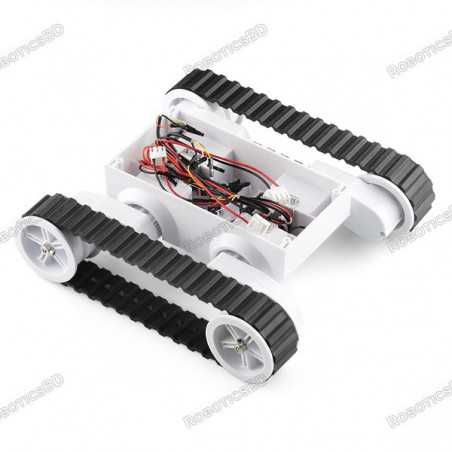

Rover 5 Robot Platform 4 Motors 4 Encoders

RBD-0176

  • Arduino Compatible
  • Easy to assemble
  • Adjustable gear box angles
  • 4 independent DC motors
  • 4 independent hall-effect encoders
  • Thick rubber tank treads
  • 10Kg/cm stall torque per motor
BDT 5,999.00
BDT 5,999.00 BDT 5,999.00 BDT 5,999.00 BDT 5,999.00
Tax included Tax excluded Tax included Tax excluded
BDT 5,999.00 Tax excluded
BDT 5,999.00 Tax included
BDT 0.00 Tax
BDT 5,999.00 Tax excluded
BDT 0.00 Tax
BDT 5,999.00 Tax included
Quantity
Last items in stock
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

If you're looking for a chassis base for your next robot, look no further than the Rover 5. The Rover 5 uses 4 independent motors, each with a hall-effect quadrature encoder and gearbox. The entire gearbox assembly can be rotated at 5 degree increments for different clearance configurations. You can even replace the tank treads with traditional wheels.

This isn't a wimpy or flimsy robot base. Weighing in at over 2.5 pounds without batteries, this base is heavy duty and can drive over quite a bit. Check the manual below for dimensional drawings. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Adjustable gear box angles
  2. 4 independent DC motors
  3. 4 independent hall-effect encoders
  4. Thick rubber tank treads
  5. 10Kg/cm stall torque per motor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Motor rated voltage: 7.2V
Motor stall current: 2.5A
Output shaft stall torque: 10Kg/cm
Gearbox ratio: 86.8:1
Encoder type: Quadrature
Encoder resolution: 1000 state changes per 3 wheel rotations
Speed: 1Km/hr
Shipment Weight 1.05 kg
Shipment Dimensions 24.5x22.5x6

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Rover 5 Robot Platform 4 Motors 4 Encoders.

Documents:

  1. Manual
  2. Datasheet (Motors)
  3. Quadrature Encoder Example
  4. Remote Control Tutorial
