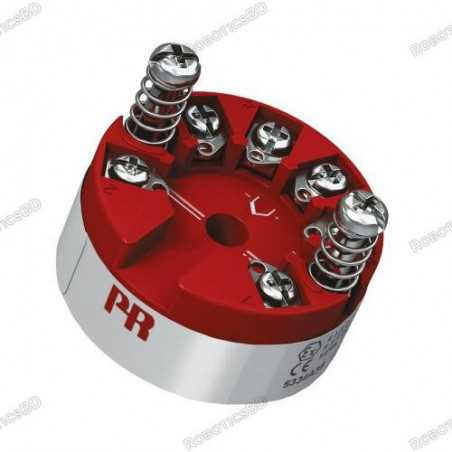

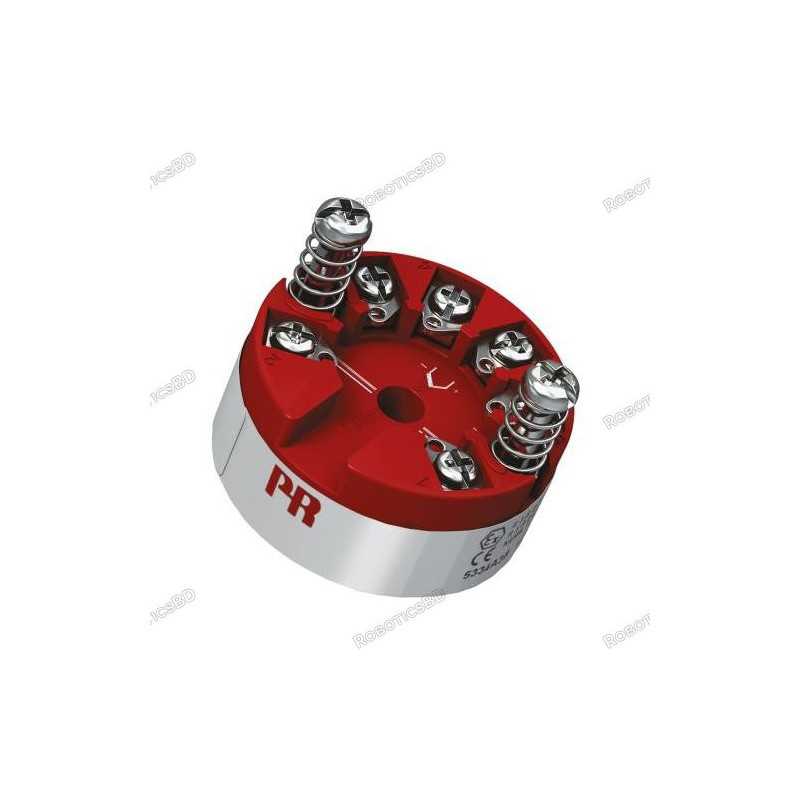

PR electronics, 5334A3B Programmable Transmitter 7.2-35 V DC

RBD-1629

  • PR electronics,
  • 5334A3B
  • 2-Wire Programmable Transmitter
  • 7.2-35 V DC
BDT 15,000.00
BDT 15,000.00 BDT 15,000.00 BDT 15,000.00 BDT 15,000.00
Tax included Tax excluded Tax included Tax excluded
BDT 15,000.00 Tax excluded
BDT 15,000.00 Tax included
BDT 0.00 Tax
BDT 15,000.00 Tax excluded
BDT 0.00 Tax
BDT 15,000.00 Tax included
Quantity
In-Stock
11 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. RTD, TC, Ohm, or mV input
  2. Extremely high measurement accuracy
  3. 1.5 kVAC galvanic isolation
  4. Programmable sensor error value
  5. For DIN form B sensor head mounting

Application:

  1. Linearized temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor.
  2. Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
  3. Amplification of a bipolar mV signal to a standard 4...20 mA current signal. RoboticsBD

Technical characteristics

  1. Within a few seconds the user can program PR5331A to measure temperatures within all ranges defined by the norms.
  2. The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
  3. Continuous check of vital stored data for safety reasons. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree (encl./terminal) IP68 / IP00
Dimensions Ø 44 x 20.2 mm
Weight approx 50 g
Wire size 1 x 1.5 mm2 stranded wire
Screw terminal torque 0.4 Nm
Vibration IEC 60068-2-6
2...25 Hz ±1.6 mm
25...100 Hz ±4 g
Supply voltage 7.2...35 VDC
Internal power dissipation 25 mW…0.8 W
Isolation voltage, test / working 1.5 kVAC / 50 VAC
Response time (programmable) 1...60 s
Voltage drop 7.2 VDC
Warm-up time 5 min.
Programming Loop Link
Signal / noise ratio Min. 60 dB
EEprom error check < 3.5 s
Accuracy Better than 0.05% of selected range
Signal dynamics, input 20 bit
Signal dynamics, output 16 bit
Effect of supply voltage change < 0.005% of span / VDC
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Max. offset 50% of selected max. value
RTD type Pt100, Ni100, lin. R
Cable resistance per wire 5 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes
Linear resistance min....max 0 Ω...5000 Ω
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) < ±1.0°C
Sensor error detection Yes
Sensor error current: When detecting / else Nom. 33 μA / 0 μA
Measurement range -12...800 mV
Min. measurement range (span) 5 mV
Input resistance 10 MΩ
Signal range 4…20 mA
Min. signal range 16 mA
Load (at current output) ≤ (Vsupply - 7.2) / 0.023 [Ω]
Load stability ≤ 0.01% of span / 100 Ω
Sensor error indication Programmable 3.5…23 mA
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA
Updating time 440 ms
of span = of the presently selected range
ATEX II 3 G Ex nA [ic] IIC T4...T6 Gc, II 3 G Ex ic IIC T4...T6 Gc, II 3 D Ex ic IIIC Dc
IECEx Ex nA [ic] IIC T4...T6 Gc, Ex ic IIC T4...T6 Gc, Ex ic IIIC Dc
EMC 2014/30/EU
RoHS 2011/65/EU
EAC TR-CU 020/2011
DNV-GL Marine Stand. f. Certific. No. 2.4
ATEX 2014/34/EU KEMA 10ATEX0002 X
IECEx DEK 13.0035X
INMETRO DEKRA 13.0001 X
CCOE P337392/1
Shipment Weight 0.55 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Mounting / installation:

For DIN form B sensor head or DIN rail mounting with the PR fitting type 8421.

Package Includes:

1 x PR electronics, 5334A3B Programmable Transmitter 7.2-35 V DC
