Features:
- RTD or Ohm input
- High measurement accuracy
- 3-wire connection
- Programmable sensor error value
- For DIN form B sensor head mounting
Application:
- Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.a
- Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
Technical characteristics:
- Within a few seconds the user can program PR5333A to measure temperatures within all RTD ranges defined by the norms.
- The RTD and resistance inputs have cable compensation for 3-wire connection. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Specifications range: |
-40°C to +85°C |
| Calibration temperature: |
20-28°C |
| Relative humidity: |
< 95% RH (non-cond.) |
| Protection degree (encl./terminal): |
IP68 / IP00 |
| Dimensions: |
Ø 44 x 20.2 mm |
| Weight approx: |
50 g |
| Wire size: |
1 x 1.5 mm2stranded wire |
| Screw terminal torque: |
0.4 Nm |
| Vibration: |
IEC 60068-2-6 |
| Vibration: 2-25 Hz: |
±1.6 mm |
| Vibration: 25-100 Hz: |
±4 g |
| Supply voltage: |
8.0-35 VDC |
| Response time (programmable): |
0.33-60 seconds |
| Internal consumption: |
25 mW-0.8 W |
| Voltage drop: |
8.0 VDC |
| Warm-up time: |
5 min |
| Programming: |
Loop Link |
| Signal / noise ratio: |
Min. 60 dB |
| Accuracy: |
Better than 0.05% of selected range |
| Signal dynamics, input: |
19 bit |
| Signal dynamics, output: |
16 bit |
| Effect of supply voltage change: |
less than 0.005% of span / VDC |
| EMC immunity influence: |
less than ±0.5% of span |
| Max. offset: |
50% of selected max. value |
| Input |
Resistance Thermometer |
| Cable resistance per wire (max.) |
10 Ω |
| Sensor current |
> 0.2 mA, < 0.4 mA |
| Effect of sensor cable resistance (3-wire) |
< 0.002 Ω / Ω |
| Sensor error detection |
Yes |
| Linear resistance min....max. |
0 Ω...10000 Ω |
| Sensor error current: When detecting / else |
Nom. 33 μA / 0 μA |
| Signal range |
4-20 mA |
| Min. signal range |
16 mA |
| Load (at current output) |
≤ (Vsupply – 8) / 0.023 [Ω] |
| Load stability |
≤0.01% of span / 100 Ω |
| Sensor error indication |
Programmable 3.5-23 mA |
| NAMUR NE 43 Upscale/Downscale |
23 mA / 3.5 mA |
| *of span |
= of the presently selected range |
| EMC |
2014/30/EU |
| EAC |
TR-CU 020/2011 |
| ATEX 2014/34/EU |
KEMA 10ATEX0003 X |
| IECEx |
DEK 13.0036X |
| INMETRO |
DEKRA 13.0002 X |
| CCOE |
P337392/3 |
| DNV-GL Marine |
Stand. f. Certific. No. 2.4 |
| Shipment Weight |
0.350 kg |
| Shipment Dimensions |
10 × 10 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Mounting / installation:
- For DIN form B sensor head or DIN rail mounting with the PR fitting type 8421.
Package Includes:

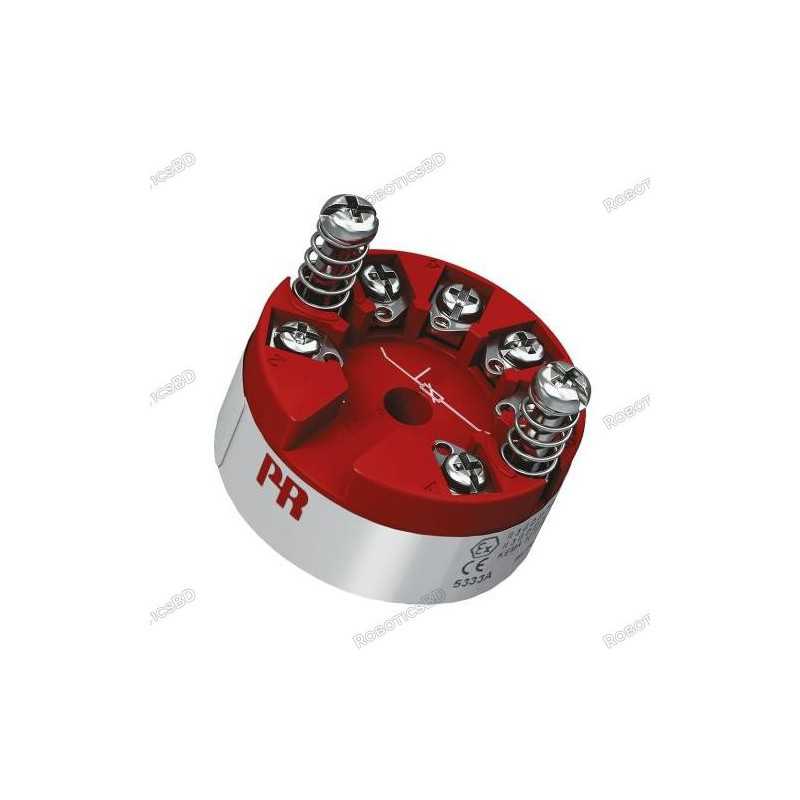

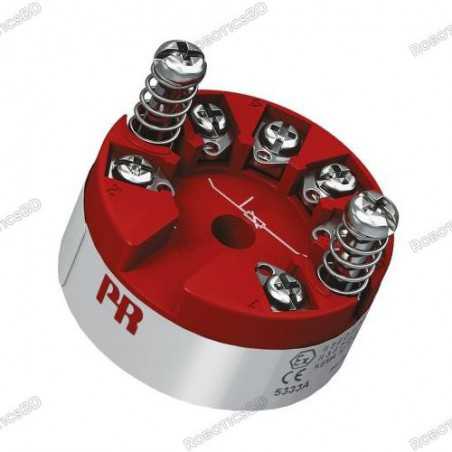

1 x PR electronics, 5333A Programmable Transmitter.
