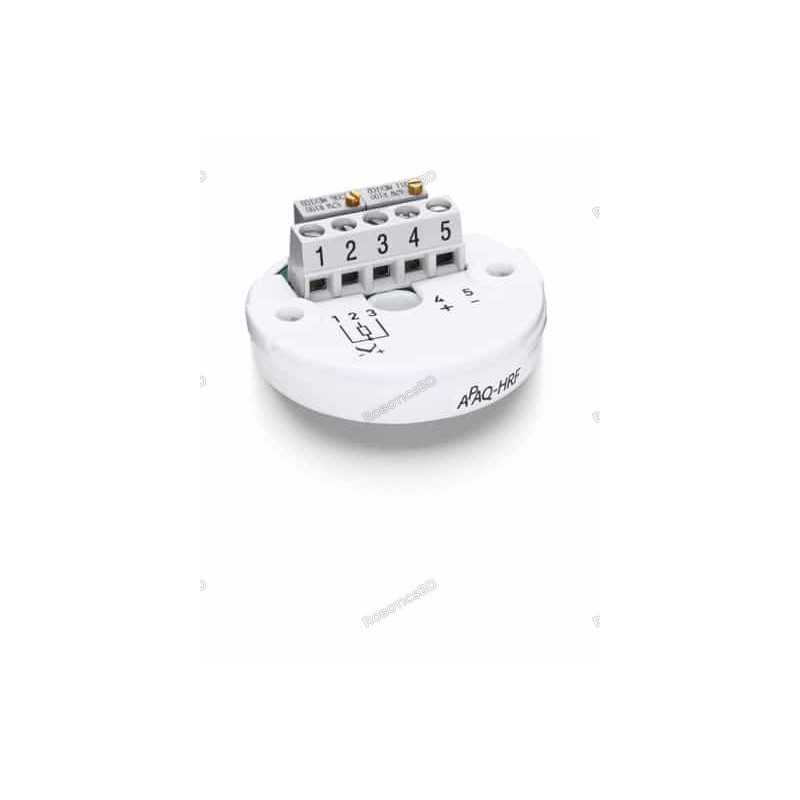

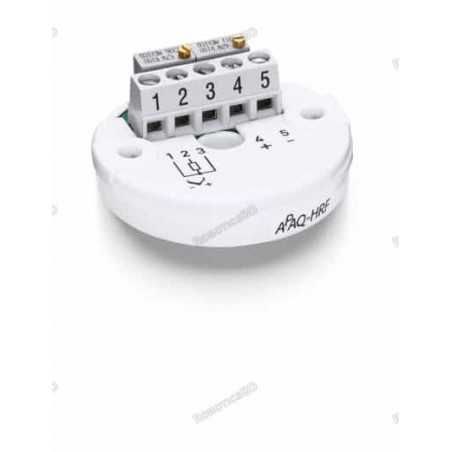

APAQ-H is a family of multirange 2-wire temperature transmitters for Pt100 or Thermocouple input.
Designed for highest reliability and excellent industrial performance. The ”low profile” housing is extremely durable and facilitates easy connections and adjustments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Rangeable with solder pads and potentiometers
- Temperature linear output for Pt100 (APAQ-HRF/-HRFX)
- mV linear output for T/C (APAQ-HCF/-HCFX)
- Consistent sensor break function
- Easy wiring, large center hole
- Moulded electronics for high protection
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Type |
Head-mounted |
| Input |
RTD; Thermocouple |
| Input RTD |
Pt100 |
| Input Thermocouple |
Type J, L, T, K, N |
| Type Of Transmitter |
Analog |
| Output |
4-20 mA |
| Isolation |
Unisolated |
| Measuring channels |
1 channel |
| Input connections |
3-wire connection |
| Power supply |
APAQ-HRF/-HCF: 6.5 to 32 VDC; APAQ-HRFX/-HCFX: 8.5 to 30 VDC |
| Approvals |
ATEX |
| Typical accuracy |
RTD: ±0.15% of span;
T/C: ±0.5% to ± 1.0% of span |
| Shipment Weight |
0.350 kg |
| Shipment Dimensions |
10 × 10 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x INOR APAQ-H Analog Adjustable 2-Wire Transmitters.
