The LM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step−down switching regulator (buck converter). All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. RoboticsBD

These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2576 are offered by several different inductor manufacturers. RoboticsBD

Since the LM2576 converter is a switch−mode power supply, its efficiency is significantly higher in comparison with popular three−terminal linear regulators, especially with higher input voltages. In many cases, the power dissipated is so low that no heatsink is required or its size could be reduced dramatically.  Featured By RoboticsBD.

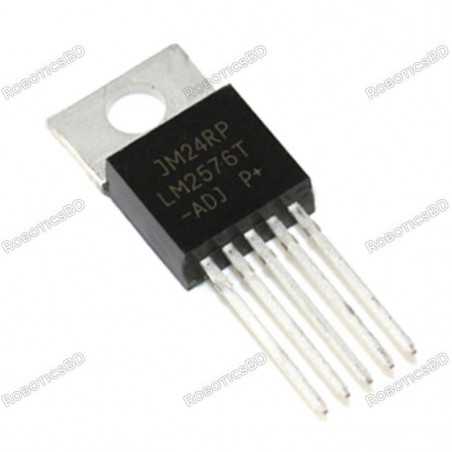

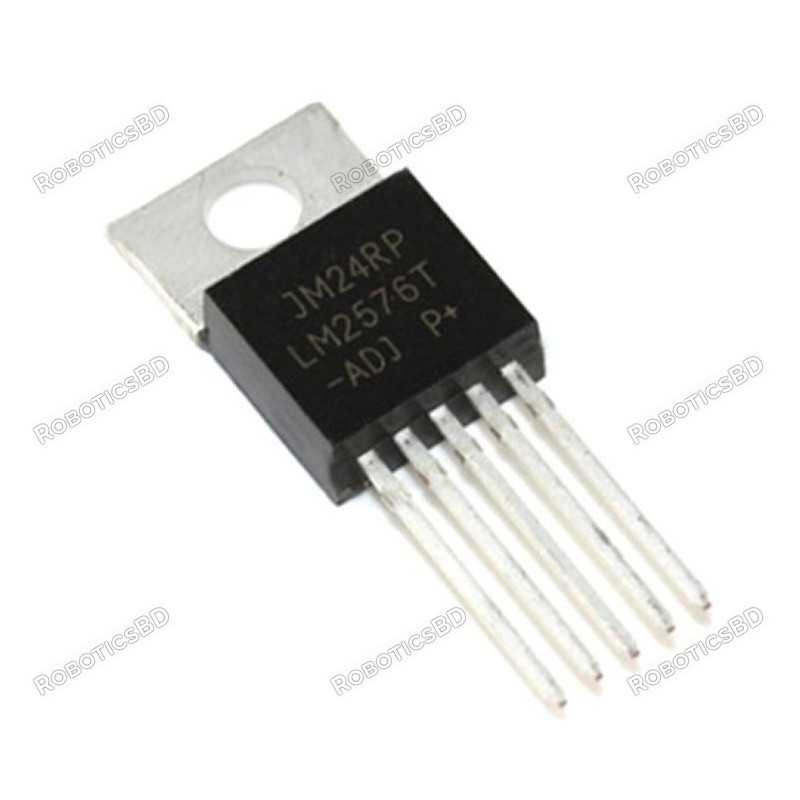

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

1. Simple High−Efficiency Step−Down (Buck) Regulator
2. Efficient Pre−Regulator for Linear Regulators
3. On−Card Switching Regulators
4. Positive to Negative Converter (Buck−Boost)
5. Negative Step−Up Converters
6. Power Supply for Battery Chargers

Features:

1. 3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions
2. Adjustable Version Output Voltage Range, 1.23 to 37 V ±4% Maximum Over Line and Load Conditions
3. Guaranteed 3.0 A Output Current • Wide Input Voltage Range
4. Requires Only 4 External Components
5. 52 kHz Fixed Frequency Internal Oscillator
6. TTL Shutdown Capability, Low Power Standby Mode
7. High Efficiency • Uses Readily Available Standard Inductors
8. Thermal Shutdown and Current Limit Protection
9. Moisture Sensitivity Level (MSL) Equals 1

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

1. Datasheet

Package Includes:

1 x LM2576
