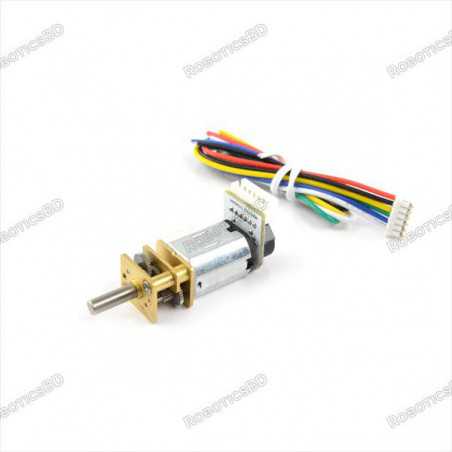

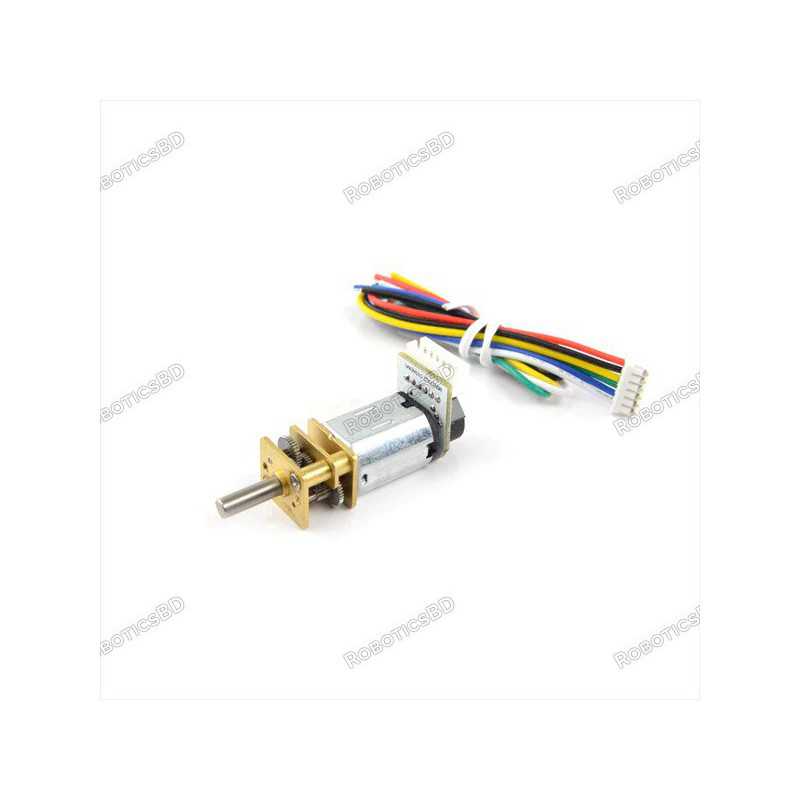

The 6V 30:1 500RPM Micro Metal Gearmotor with Encoder is a compact and versatile motor equipped with a built-in encoder. This encoder allows for precise measurement of the motor's speed in real time, providing accurate feedback for various applications. With an average output of up to 420 pulses per revolution, the encoder delivers reliable and consistent performance. The motor features a long D profile metal output shaft measuring 0.354 inches (9.0 mm), which is compatible with the dimensions of the Pololu wheel (42x19mm and 32x7mm). The brass faceplate of the gearmotor comes with two threaded mounting holes, providing convenient and secure installation options. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 6V 30:1 micro metal gearmotor
- Built-in encoder for real-time speed measurement
- Average output of up to 420 pulses per revolution
- Long D profile metal output shaft for compatibility with Pololu wheels
- Brass faceplate with two threaded mounting holes for easy installation
- Compact and versatile design
- Reliable and precise performance
- Suitable for various applications requiring motor speed control and monitoring
- Can be used with mounting brackets for additional support and gear protection
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Robotics projects
- Motorized vehicles
- Automation systems
- Precision positioning systems
- Mechatronics applications
- DIY electronics projects
- Educational projects
- Industrial machinery
- Prototyping and experimentation
- Motion control systems
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Product Name |
6V 30:1 500RPM Micro Metal Gearmotor w/ Encoder |
| Input Voltage |
6V |
| Gear Ratio |
30:1 |
| No-Load Speed (RPM) |
500 |
| Output Shaft Diameter |
0.354"/9.0 mm |
| Encoder Pulses/Rev |
Up to 420 |
| Mounting Holes |
2 threaded holes |
| Shaft Diameter (mm) |
3 |
| Weight |
11 |
| Shipment Weight |
0.016 kg |
| Shipment Dimensions |
6 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to wiring? :
- Red – motor Power (Exchange can control the motor positive and negative rotation).
- Black – encoded power supply(VCC) – Positive (positive 3.3-5v).
- Yellow – signal feedback (motor turns 2 signals).
- Green – signal feedback (motor turns 2 signals).
- Blue – encoded power(GND).
- White – Motor power (Exchange can control the motor positive and negative rotation).
Package Includes:
1 x 6V 30:1 500RPM Micro Metal Gearmotor w/ Encoder
