MG996R 360 Degree Continuous Rotation Servo Motor Robotics Bangladesh
  • MG996R 360 Degree Continuous Rotation Servo Motor Robotics Bangladesh

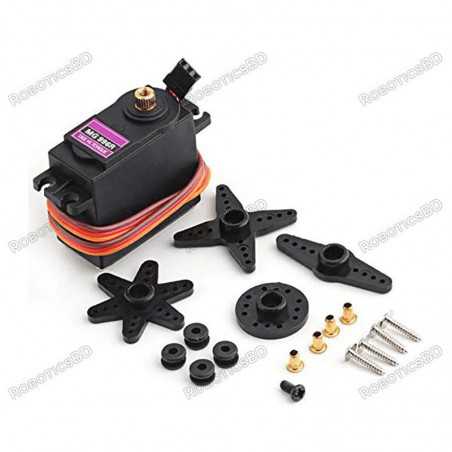

Servo Motor MG996R 360 Degree Continuous Rotation

RBD-2320

The  MG996R is an industry standard for high torque servos. The metal gearing gives a stalling torque of a high 10kg in a small package.

The MG996R 360° has the ability to rotate continuously though 360° in both directions. This makes this servo perfect for robotics or even the rotation of camera sliders!

Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.
BDT 730.00
BDT 730.00 BDT 730.00 BDT 730.00 BDT 730.00
Tax included Tax excluded Tax included Tax excluded
BDT 730.00 Tax excluded
BDT 730.00 Tax included
BDT 0.00 Tax
BDT 730.00 Tax excluded
BDT 0.00 Tax
BDT 730.00 Tax included
Quantity
197 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.

  1. As the name implies, a "continuous rotation" servo cannot be controlled in terms of degree; it will rotate continuously either in the forward or reverse direction. However, you can control its speed. The code for operating a continuous rotation servo differs from that of a regular servo.
  2. To achieve continuous rotation to the left, use the command myServo.write(0). For rotation to the right, employ myServo.write(180). To halt the servo's movement, you'll need to find the exact value. You can try different values around the middle, such as myServo.write(90) or myServo.write(95), to determine the stopping point.

Enjoy controlling your robot and exploring its capabilities!

The  MG996R is an industry standard for high torque servos. The metal gearing gives a stalling torque of a high 10kg in a small package.

The MG996R 360° has the ability to rotate continuously though 360° in both directions. This makes this servo perfect for robotics or even the rotation of camera sliders!

Specifications

  • 360° Rotation
  • continuous 360° rotation in both directions
  • Weight: 55 g
  • Dimension: 40.7 x 19.7 x 42.9 mm approx.
  • Stall torque: 9.4 kgf/cm at 4.8V ), 11 kgf/cm at 6V
  • Operating speed: 0.17 s/60º at 4.8V, 0.14 s/60º at 6V
  • Operating voltage: 4.8V – 7.2V
  • Running Current 500 mA – 900 mA (6V)
  • Stall Current 2.5A at 6V
  • Dead band width: 5 µs
  • Stable and shock proof double ball bearing design
  • Gear Type: All Metal Gears
  • Servo Plug: JR (Fits JR and Futaba)
  • Connector Wire: Heavy Duty, 11.81″ (300mm)
  • Temperature range: 0 ºC – 55 ºC
