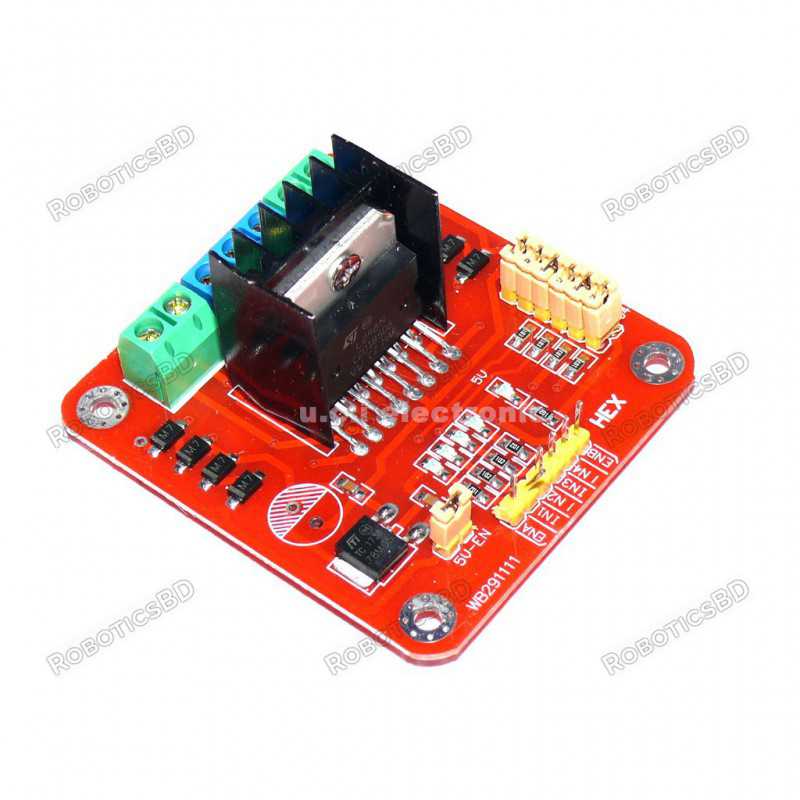

L298N Dual H-Bridge Motor Driver Module

RBD-2389

This module is ideally suited to motor control to your project. This is the L298N Dual H-Bridge module which allows you to build in 2 controlled motors to your projects, controlling the speed with current. This can be used with a wide range of microcontrollers including Arduino and Raspberry Pi.

BDT 420.00
BDT 420.00 BDT 420.00 BDT 420.00 BDT 420.00
Tax included Tax excluded Tax included Tax excluded
BDT 420.00 Tax excluded
BDT 420.00 Tax included
BDT 0.00 Tax
BDT 420.00 Tax excluded
BDT 0.00 Tax
BDT 420.00 Tax included
Quantity
8 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This module is ideally suited to motor control to your project. This is the L298N Dual H-Bridge module which allows you to build in 2 controlled motors to your projects, controlling the speed with current. This can be used with a wide range of microcontrollers including Arduino and Raspberry Pi.
The module allows the use of PWM control of up to 4 DC motors or a two 2/4 phase stepper motors, the connections of which are screwed into the terminals. The module can be powered using 5 - 35V, furthermore if powered by a voltage greater then 7V the 5V terminal will be able to act as a 5V power source. The logic level can be powered by USB if desired.
Please do not hesitate to contact us if you require further information regarding the module's operation.
PinDescription
ENA Motor A Speed Control
IN1 Motor A Direction Pin 1
IN2 Motor A Direction Pin 2
IN3 Motor B Direction Pin 1
IN4 Motor B Direction Pin 2
ENB Motor B Speed Control
TerminalDescription
VMS 5-35V Input
GND 0V
5V 5V input/output
OUT1 Motor A
OUT2 Motor A
OUT3 Motor B
OUT4 Motor B
Product Details
RBD-2389
8 Items

Specific References

EAN13
2389
