The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop. RoboticsBD
The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode. RoboticsBD
Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse). RoboticsBD

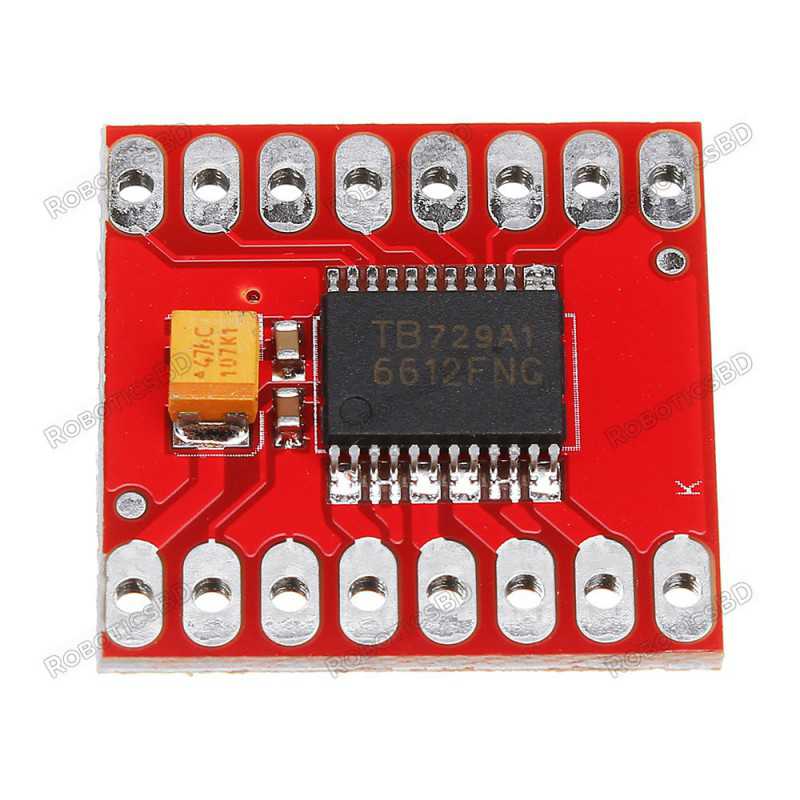

Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- Output current: Iout=1.2A(average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1″ spaced pins
- Filtering capacitors on both supply lines. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Driver Model |
TB6612FNG |
| Operating Voltage (VDC) |
1-14 |
| Peak Current (A) |
3.2 |
| Continuous Current (A) |
1.2 |
| No. of Channels |
1 |
| LED Indicator |
Yes |
| Cooling Fan |
No |
| Arduino Sheild |
No- can be used with Wire connection |
| Polarity Protection |
NO |
| Dimensions in mm (LxWxH) |
30 x 20 x 10 |
| Weight (gm) |
22 |
| Shipment Weight |
0.03 kg |
| Shipment Dimensions |
5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x Motor Driver - Dual TB6612FNG (1A)
