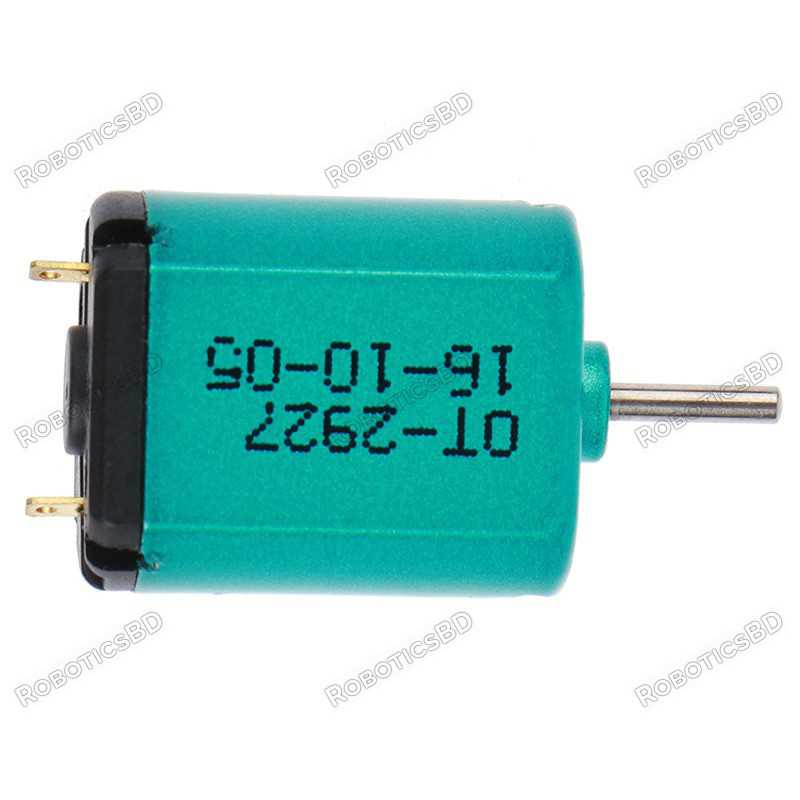

Carbon Brush DC Motor 1.5V to 3.7V High Speed

RBD-2197

  • Model: 030-2927
  • Motor size : 18.6mm*15.4mm*11.8mm (approx.)
  • Motor shaft diameter: 1.5mm (approx.)
  • Output shaft length: 8.5mm (approx.)
BDT 150.00
BDT 150.00 BDT 150.00 BDT 150.00 BDT 150.00
Tax included Tax excluded Tax included Tax excluded
BDT 150.00 Tax excluded
BDT 150.00 Tax included
BDT 0.00 Tax
BDT 150.00 Tax excluded
BDT 0.00 Tax
BDT 150.00 Tax included
Quantity
In-Stock
34 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is the DC motor, which can be used in any DIY project or in the science fair project. With an operating voltage range of 1.5V-3V this motors can be operated using  two AA batteries or with a 3V USB power supply. Featured By RoboticsBD.

To power a Carbon Brush Mini 030 Electric Motor using AA batteries, you will need to use a battery holder that can hold at least 2 AA batteries in series. This will provide a voltage of 3V, which is within the operating voltage range of the motor. You can connect the positive terminal of the battery holder to the positive terminal of the motor and the negative terminal of the battery holder to the negative terminal of the motor.


It is important to note that the current supplied by the batteries should be within the current rating of the motor to avoid damaging it. Also, if you require more power, you can use more batteries in series to increase the voltage, but keep in mind that the current rating of the motor should not be exceeded.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:
  1. Robotics and automation projects.
  2. Small-scale model making and hobby projects.
  3. Remote control cars and toys.
  4. DIY and educational projects.
  5. Medical and laboratory equipment.
  6. USB mini fan.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Carbon brush design for high-speed operation
  2. DC voltage range of 1.5V to 3.7V
  3. Small and compact size (Mini 030)
  4. Suitable for DIY projects and hobbyist use
  5. High-speed operation with a no-load speed of 20,000 RPM.


RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model030-2927 Motor
Motor size (mm)18.6 x 15.4 x 11.8
Shaft Length8.5 mm
Shaft Diameter1.5 mm
Length (mm)30
Width (mm)15
Height (mm)12
Weight (gm)9
Shipment Weight0.01 kg
Shipment Dimensions5 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Test data:


  1. Voltage: 1.5V  Speed: 23000RPM Current: 570ma
  2. Voltage: 2.4V Speed: 36500RPM Current: 660ma
  3. Voltage: 3.0V Speed: 43000RPM Current: 730ma
  4. Voltage: 3.7V Speed: 52000RPM Current: 770ma


Package Includes:

1 x Carbon Brush DC Motor 1.5V to 3.7V High Speed

Product Details
RBD-2197
34 Items

Specific References

EAN13
2197
