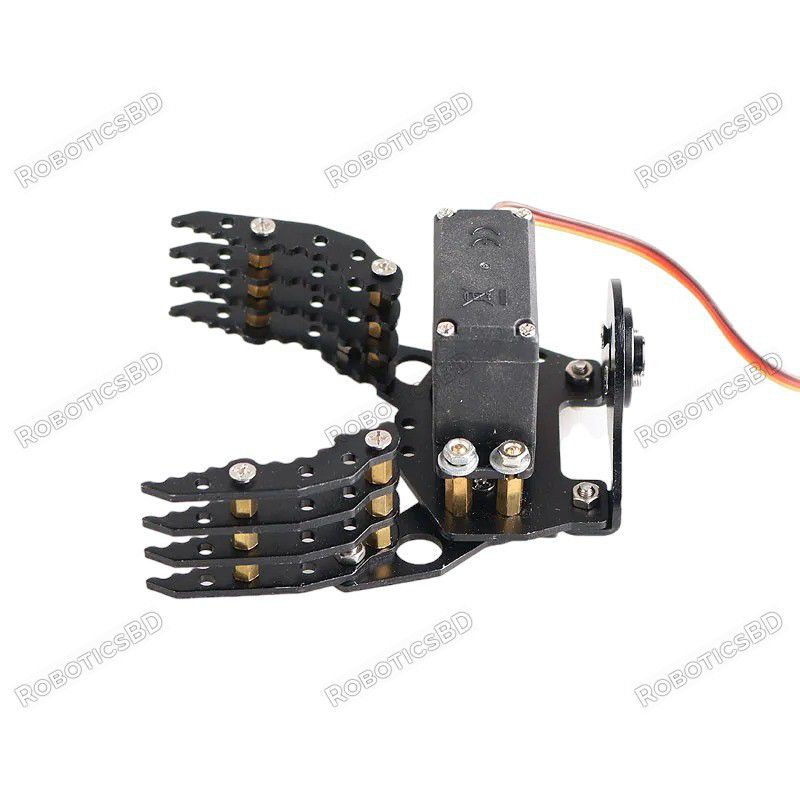

G6 Metal Robot Arm Gripper Mechanical Claw

RBD-1657

  • Metal Mechanical Robot Arm Claw
  • Remote Control Robotic Paws
  • Steering Gear MG996R Servo
  • Arduino
  • Raspberry pi
  • DIY Smart Robot Functional
BDT 1,900.00
BDT 1,900.00 BDT 1,900.00 BDT 1,900.00 BDT 1,900.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,900.00 Tax excluded
BDT 1,900.00 Tax included
BDT 0.00 Tax
BDT 1,900.00 Tax excluded
BDT 0.00 Tax
BDT 1,900.00 Tax included
Quantity
In-Stock
12 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

G6 Metal Robot Arm Gripper Mechanical Claw with MG996 Servo. You will get: 1set unassembled gripper, 1 bag screw, and 1pcs MG996R servo; This claw is metal including many accessories, so please have patience to install the claw. After that, the claw is very beautiful and solid.  The claw is UNASSEMBLED for convenience of transport. But we provide the installation manual with this item or visit gitnova to get the documents, or contact us to get the document. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. The holder is made of thickened full-hard aluminum alloy, and the shape is beautiful and practical
  2. The gripper adopts a double-sided toothed structure, which makes the grasping object more stable and stable, and an essential artifact for grasping the object. RoboticsBD
  3. Standard servo can be installed.

Servo parameters:
  1. MG996R servo/ MG995 servo
  2. Net weight: 55 g
  3. Size: 40.7*19.7*42.9 mm
  4. Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
  5. Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
  6. Working voltage: 4.8-6.6 V
  7. Working temperature: 0°C-55°C
  8. Gear form: metal gear
  9. Working dead zone: 5 us (microseconds)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Material: Hard aluminum alloy
Weight: 40g (without servo)
Maximum angular separation: 86mm
Overall length 83mm (the overall longest length when the paw is closed)
Overall width 150mm (maximum overall width when the paw is open)
Overall width 55mm (maximum overall width when the paw is closed)
Overall thickness 54mm (maximum overall thickness with servo paws)
Shipment Weight 0.174 kg
Shipment Dimensions 11 × 7 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Installation Guide

Package Includes:

1 x G6 Metal Robot Arm Gripper Mechanical Claw

1 x MG996R/MG995 Servo.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1657
12 Items

Specific References

EAN13
1657
